Solar Panel Kit Complete 400W 300W 200W 100W 12V Flexible Solar Power Panel for Solar Battery Charger/Power Bank/Camping/Hiking

If you are United Kingdom/Switerland customer,the parcel may be charged Customs Duty/Import VAT/Clearance Fee by local border crossing inspection institution，no matter ship from Europe or China.Please notice.

Description

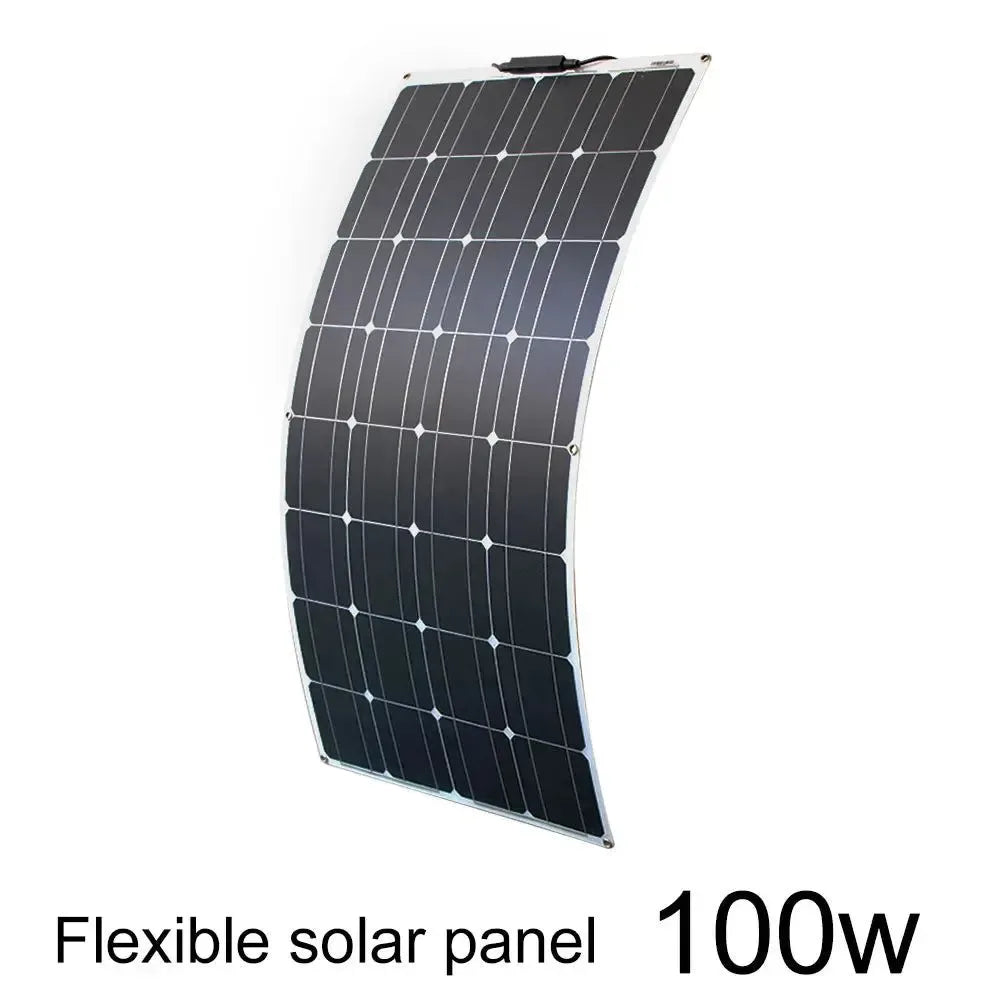

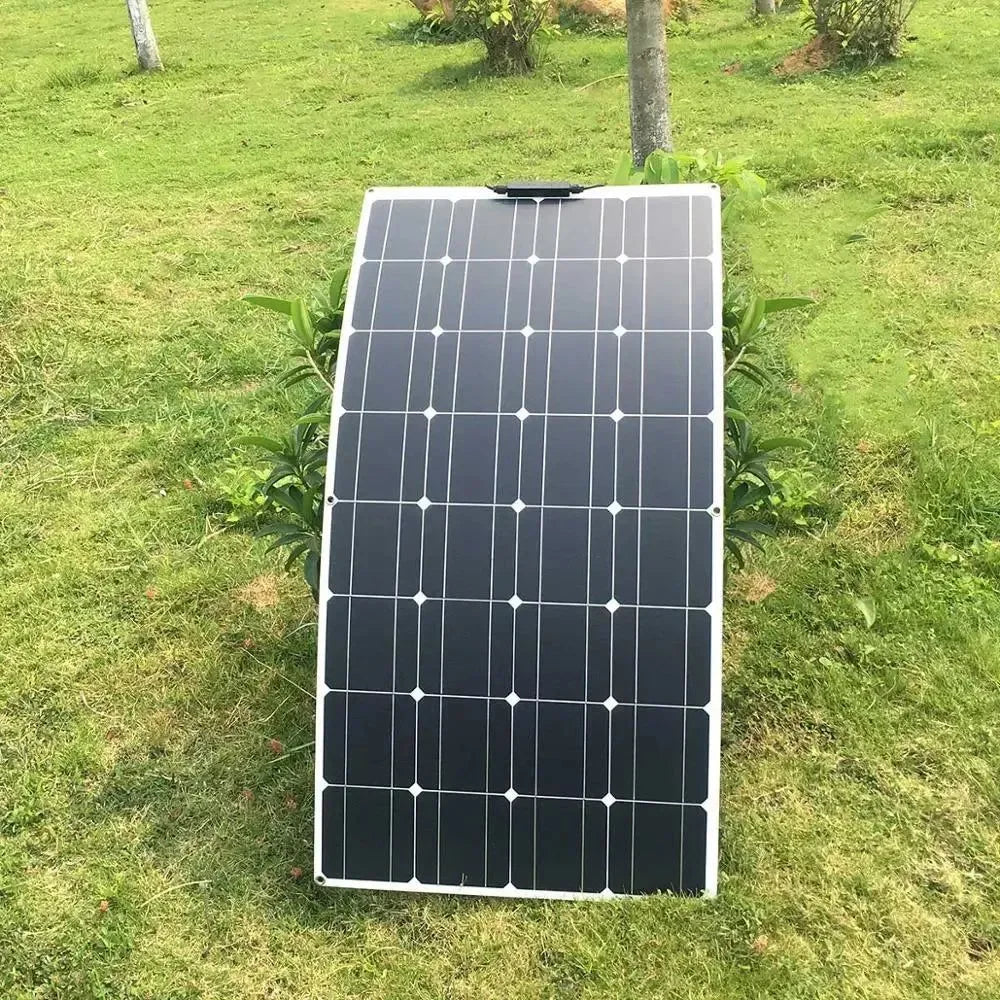

The 100W Flexible Solar Panel, which is powerful and lightweight owing to its 0.1in thickness and weighing just 4.21 pounds. This panel boasts a unique frameless design that ensures easy installation. Each panel has six metal-reinforced mounting holes for fixing screws, hanging and removing the panel while allowing easy transportation.

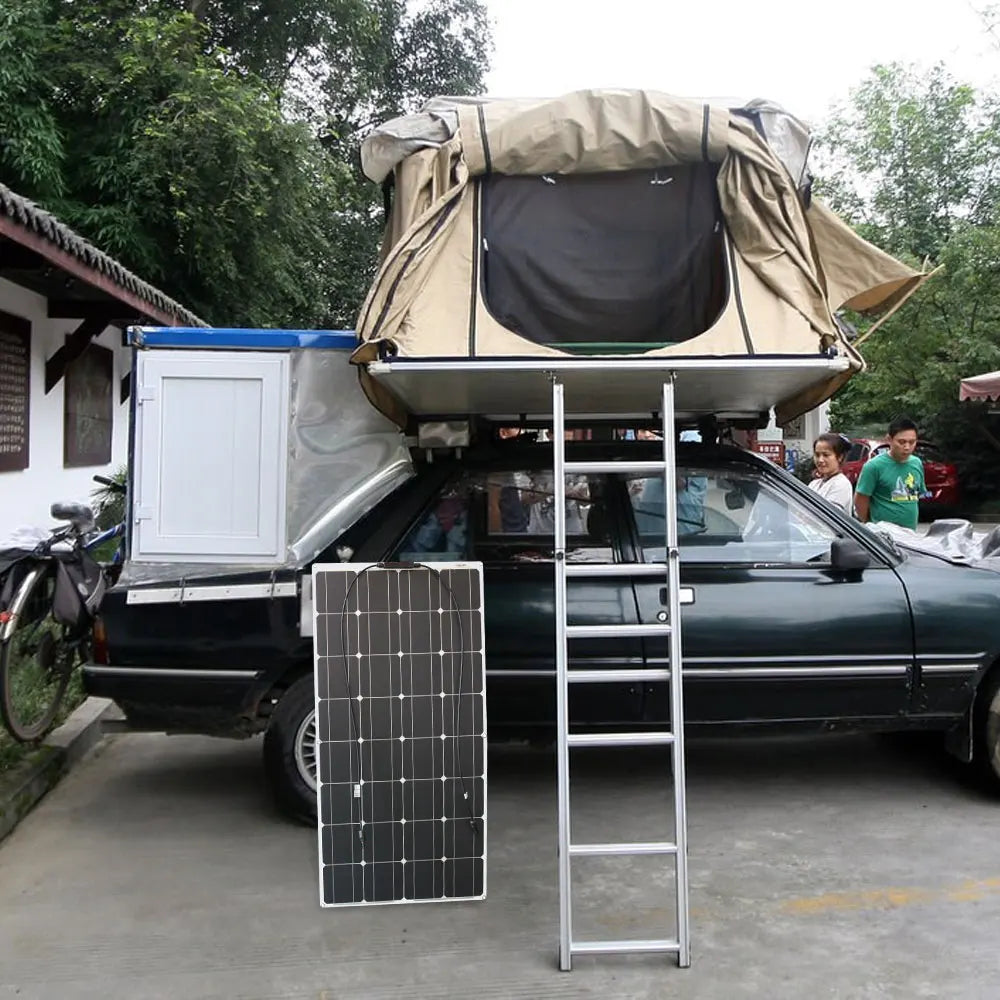

As you would expect with flexible solar panels, the 100w flexible solar panel is bendable to a maximum of 20 degrees, thus encouraging mounting on curved surfaces. Some of the places you can mount the panel include on RV, van, travel trailer, cabin, or any other uneven surface.

At around 23% to 25%, this solar panel is more efficient than many average devices on the market. In addition, it comes with an integrated blocking diode, which helps prevent reverse current drain, especially at night. This ensures optimum efficiency levels.

Advantages

Super Lightweight:
With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

High Efficient:
High efficiency solar cell: Monocrystalline 23%.

Extremely Flexible:
This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

Super Thin:
Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Protection:
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

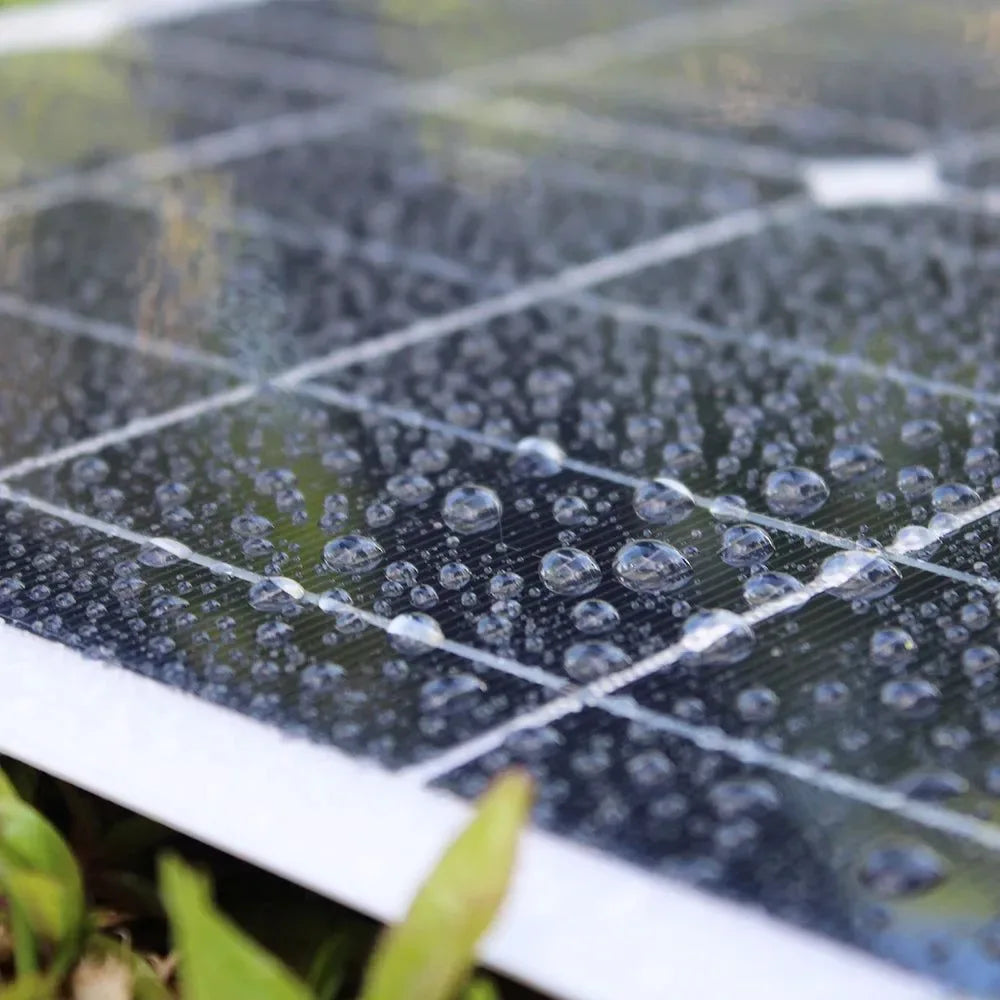

Highly Durable:
Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.

Easy to install:
Metal holes in the corners of the product for fixing screws and mounting.

Products Parameter at Standard Test Conditions

Electrical Characteristics

Max Power Pmax 100W
Max Power voltage Vmp 16V
Max Power Current Imp 6.25A
Open Circuit Voltage Voc 19.2V
Short Circuit Current Isc 6.875A
Maximum System Voltage 600V
Number of cells in Series 32
Cell size 125X125mm
Max Power tolerance ±3%

Mechanical Characteristics

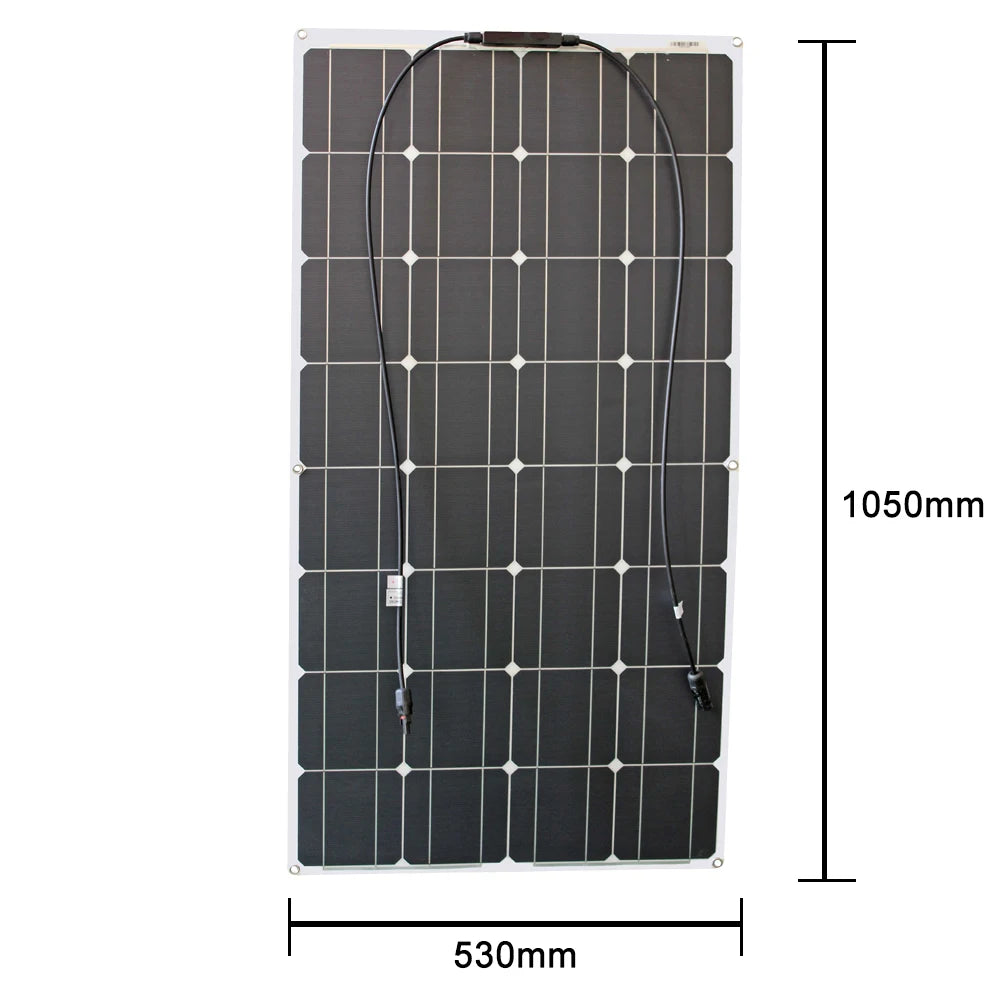

Dimension 1050X530X2.5mm
Weight 2.04kg
Cable 0.9 meter 2X2.5mm

NOTE

100w 200w 300w 400w solar panels are solar panels without accessories.

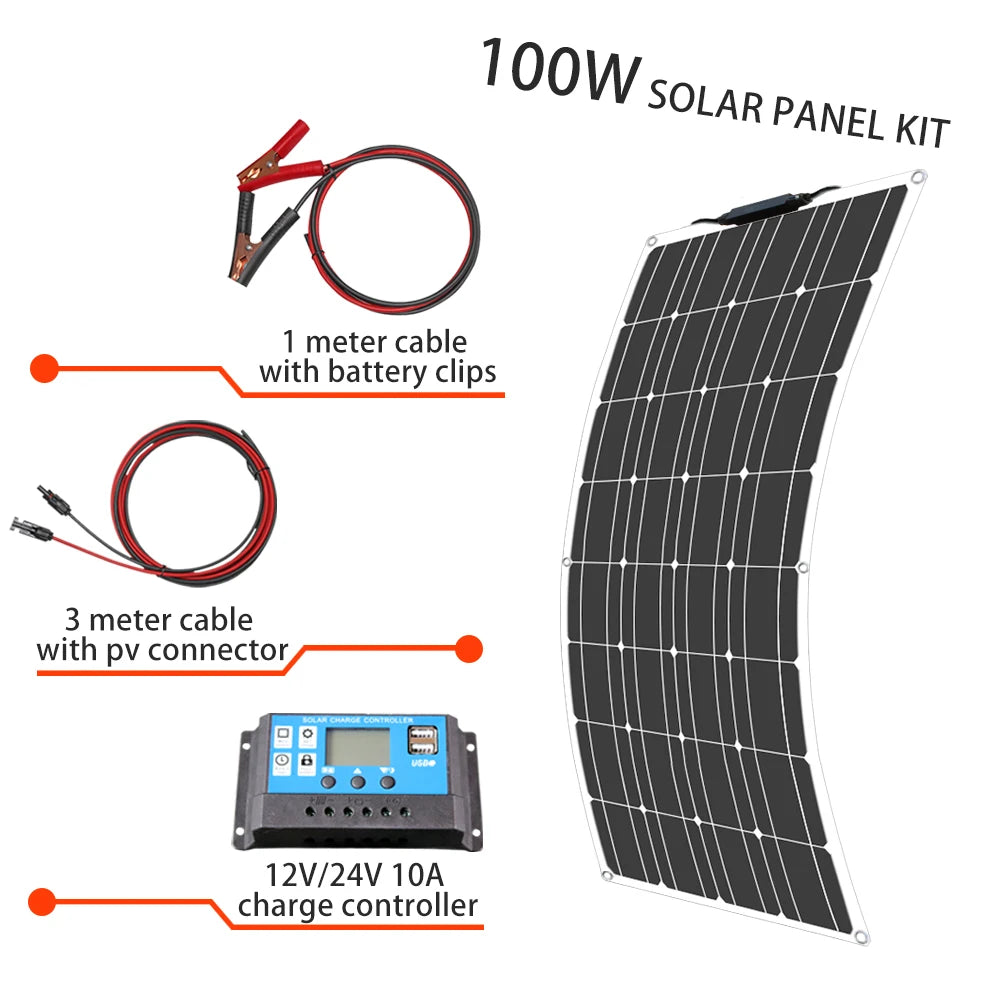

100W solar panel=1 PCS 100w flexible solar panel

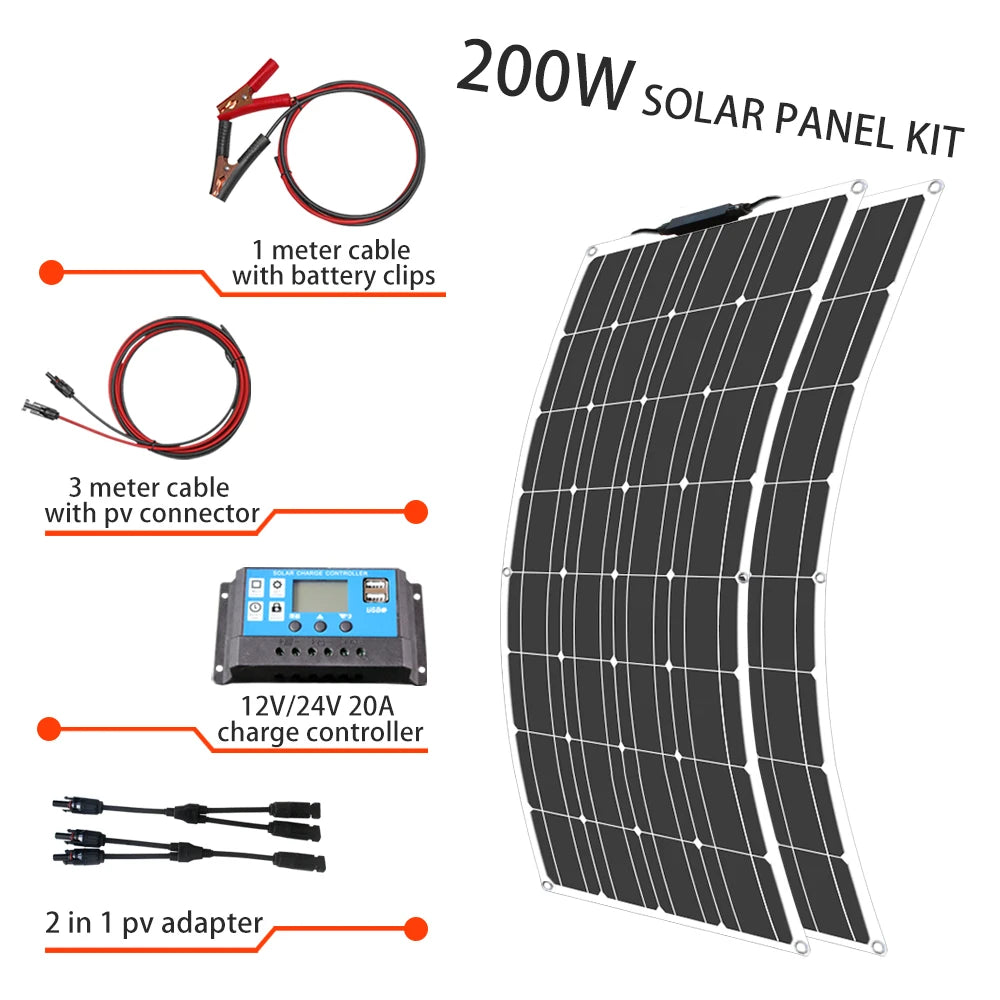

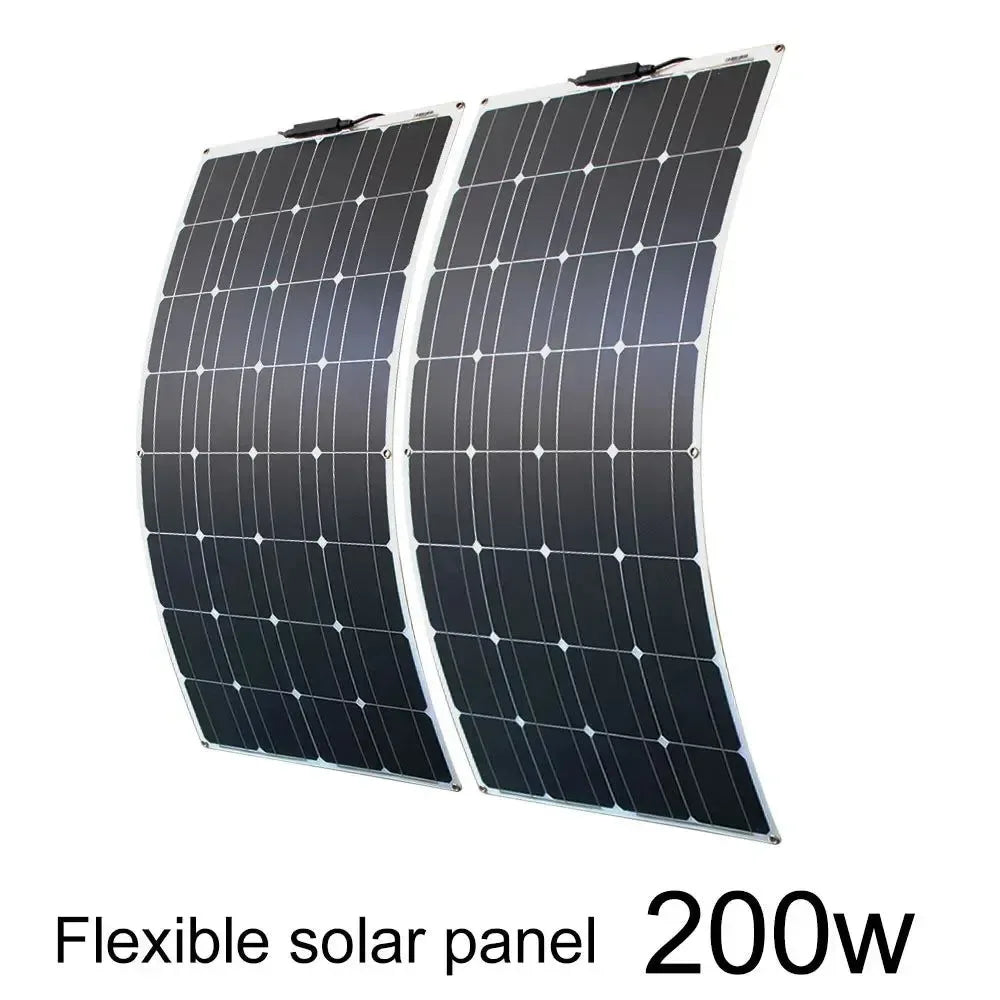

200W solar panel=2 PCS 100w flexible solar panel

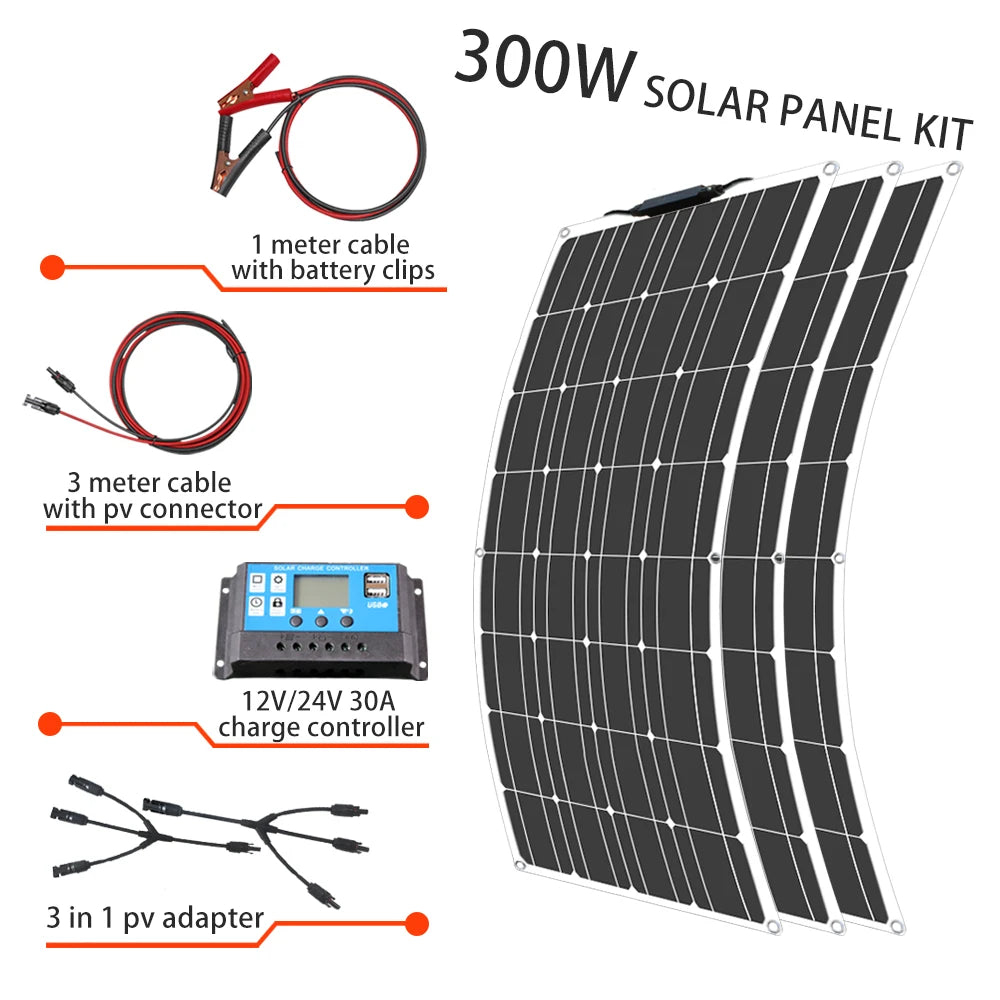

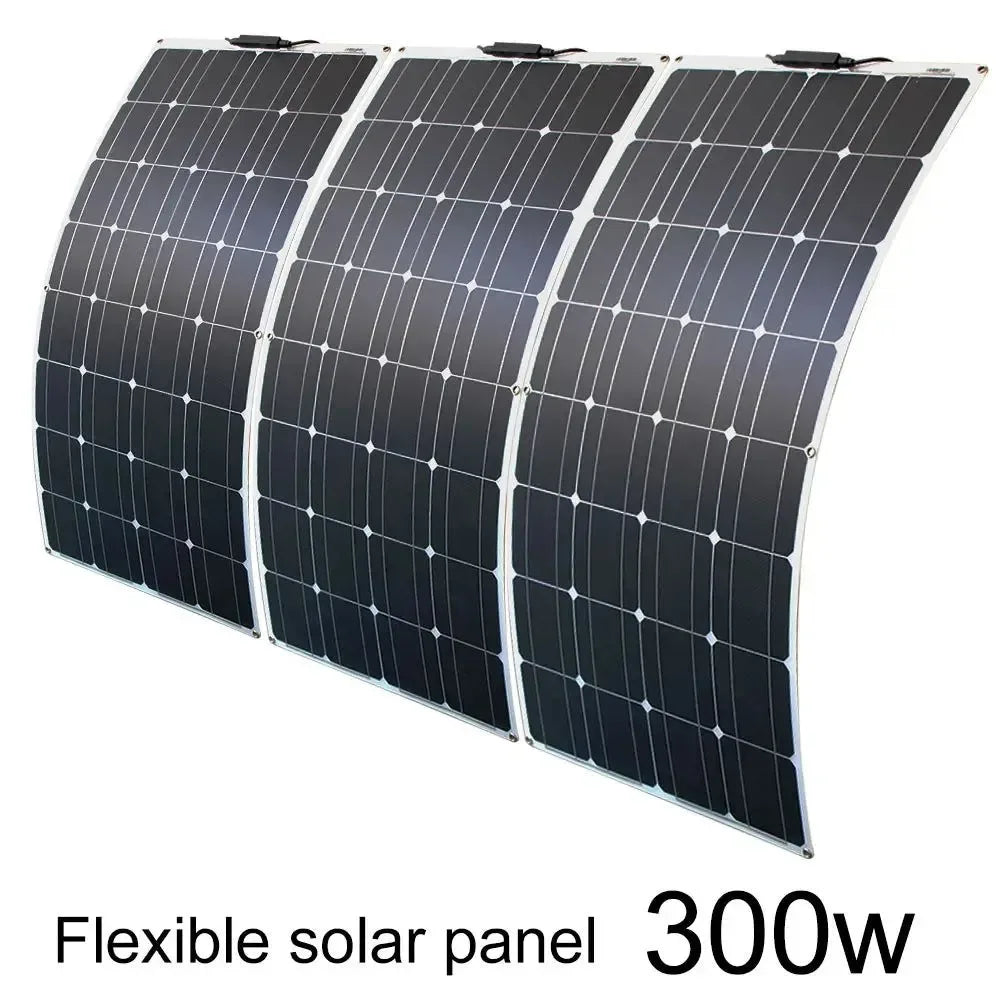

300W solar panel=3 PCS 100w flexible solar panel

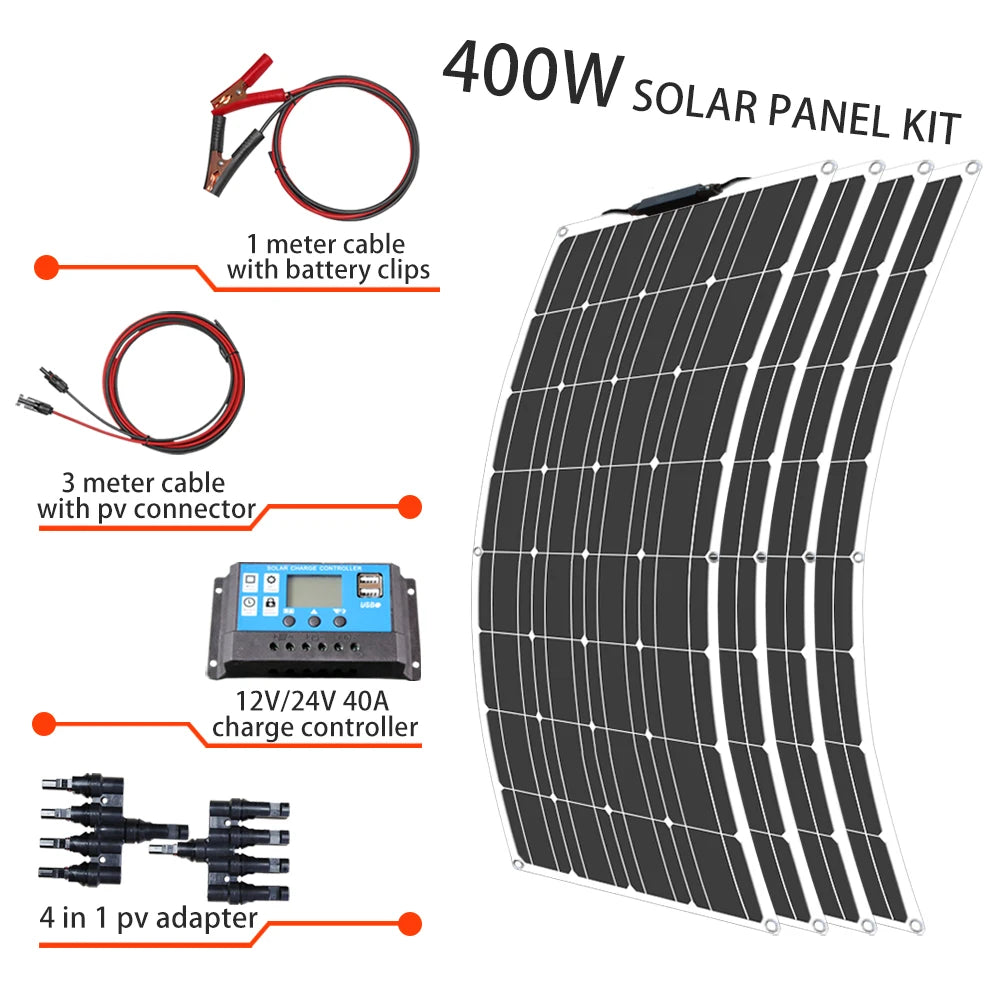

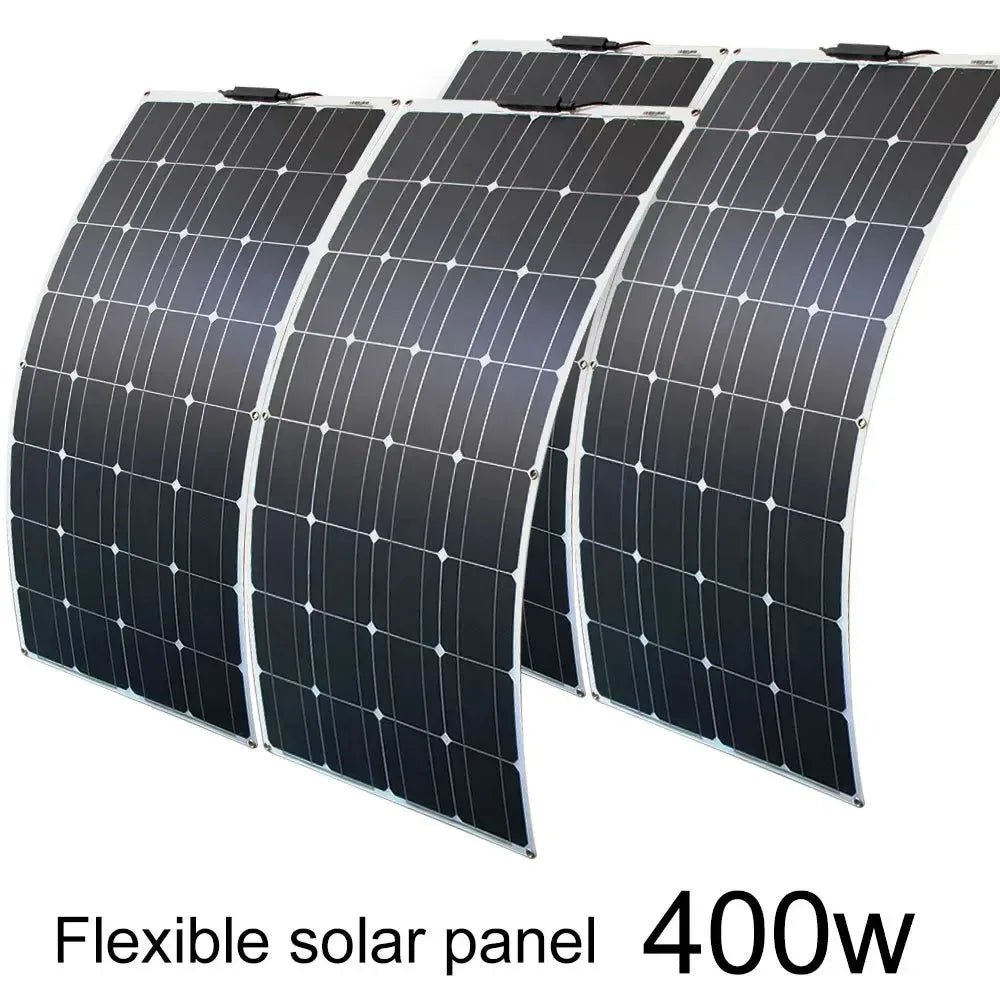

400W solar panel=4 PCS 100w flexible solar panel

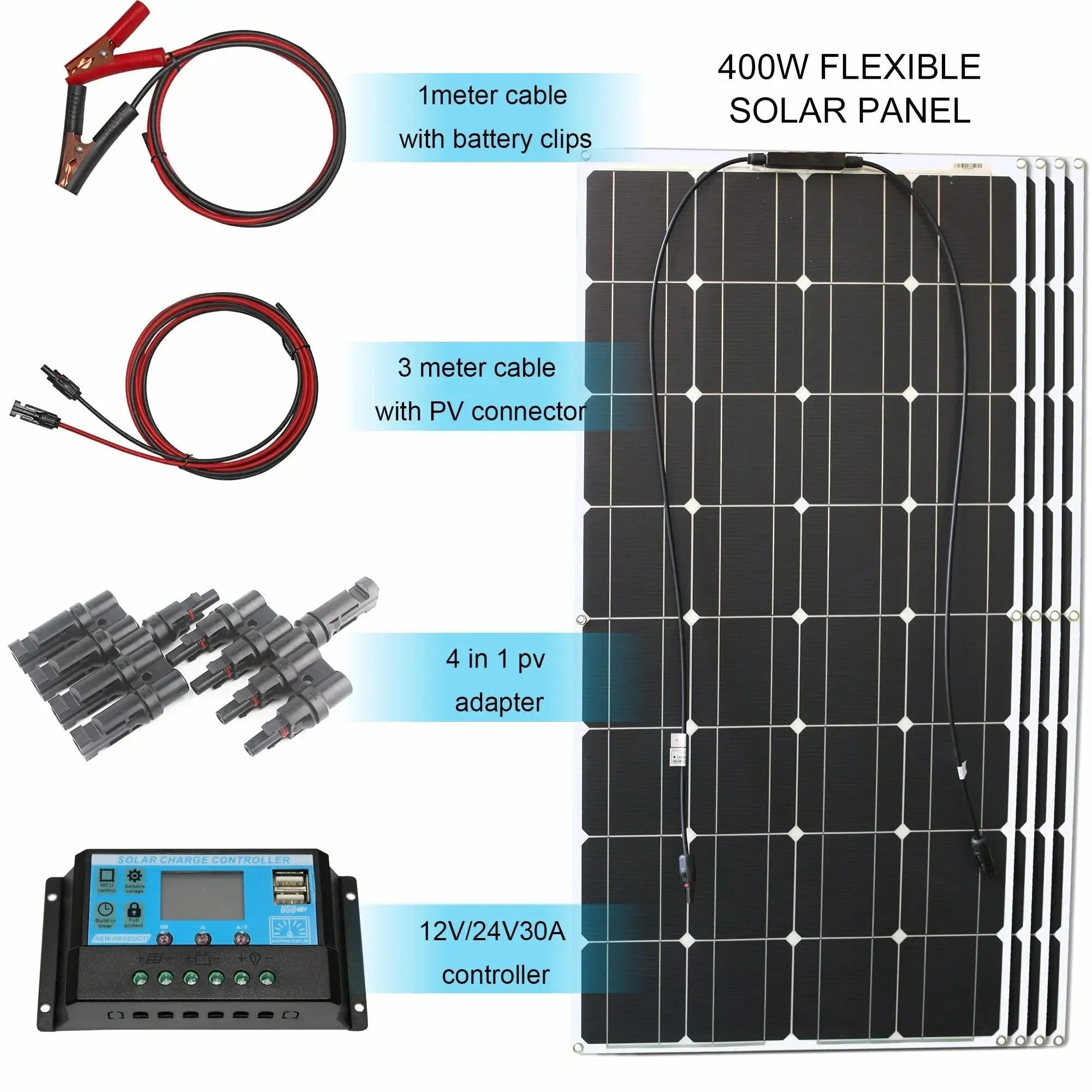

System Connection:

1.Connect the controller to the battery

First connect cable with alligator clips to controller by screwdriver.Then connect alligator clips(black ) to the negative pole of the battery, next connect alligator clips (red) to the positive pole of the battery,pay attention to the positive and negative poles.After correct connection, the controller will display the voltage parameters of battery.

2.Connect the flexible solar panels to the controller

First connect extend cable to the controller by screwdriver.Then connect connect parallel adapter to the solar panel.If there is only one panel, please ignore this step.Next connect parallel adapter to extend cable.taking care when connecting & disconnecting the connector to avoid damage.Afetr right connection,the controller will display the solar panel is charging the battery.

3.Connect the DC load to the controller

4.Connect the invertor to the battery for AC output

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
