Β HowΒ toΒ ConnectΒ theΒ SolarΒ Kit?
1.Β InstallΒ theΒ solarΒ controllerΒ inΒ theΒ areaΒ youΒ need.Β ItΒ isΒ recommendedΒ thatΒ theΒ controllerΒ beΒ installedΒ indoorsΒ inΒ aΒ coolΒ areaΒ toΒ extendΒ theΒ serviceΒ life.
2.Β FirstΒ connectΒ theΒ controllerΒ toΒ theΒ batteryΒ orΒ mobileΒ powerΒ supplyΒ byΒ wireΒ (noteΒ thatΒ theΒ controllerΒ mustΒ firstΒ connectΒ theΒ batteryΒ orΒ mobileΒ power).
3.Β InstallΒ theΒ solarΒ panelΒ inΒ aΒ sunnyΒ area,Β doΒ notΒ installΒ inΒ theΒ shadeΒ ofΒ theΒ treesΒ orΒ haveΒ otherΒ obstructedΒ areas.
4.Β ConnectΒ theΒ installedΒ solarΒ panelΒ toΒ theΒ controller
5.Β FollowΒ theΒ instructionsΒ ofΒ theΒ controller,Β setΒ theΒ parametersΒ accordingΒ toΒ yourΒ needs,Β orΒ useΒ theΒ defaultΒ parameters.Β

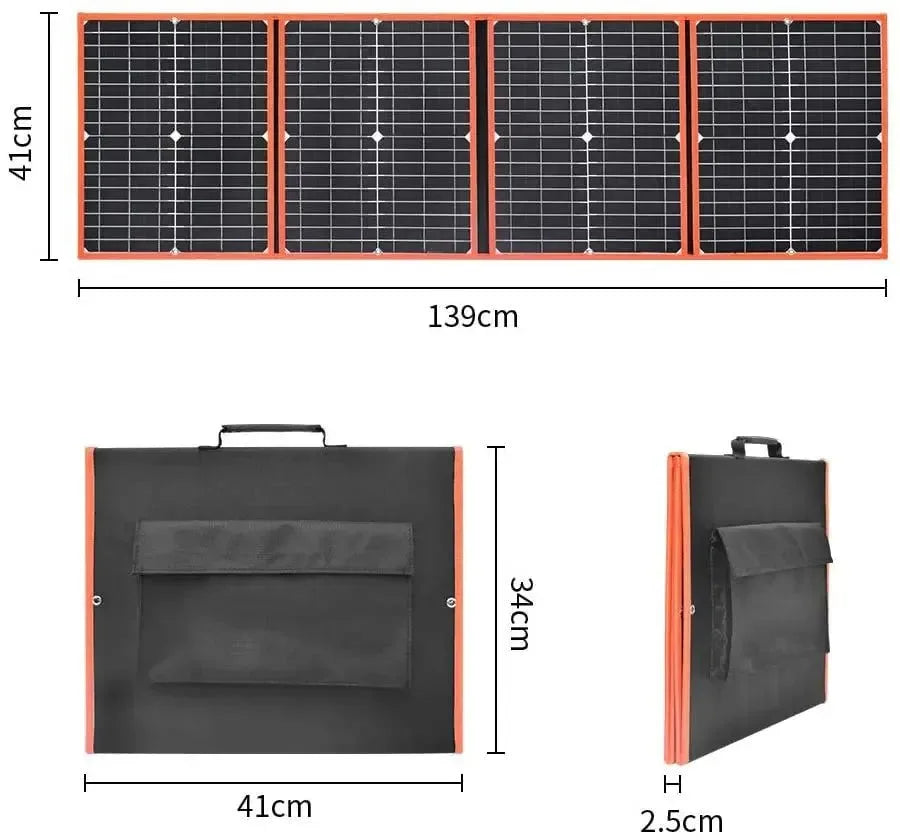

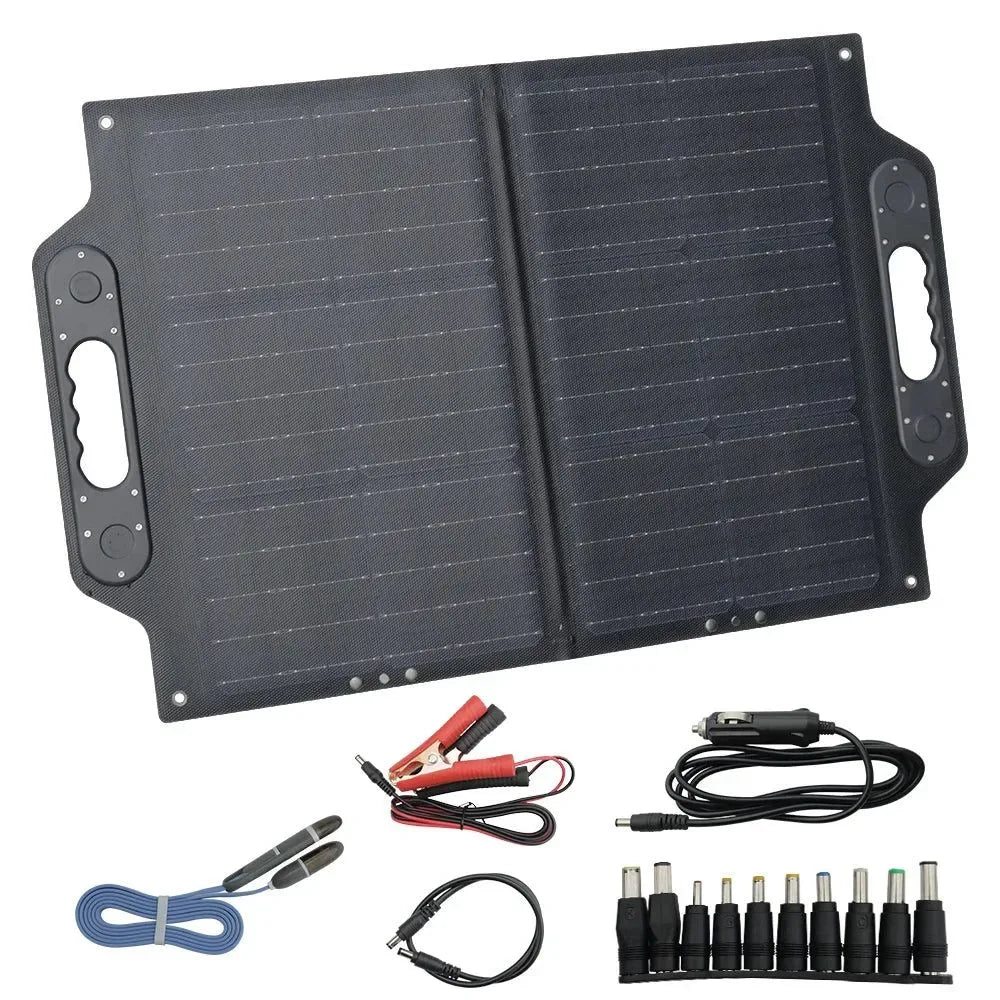

40Β wattΒ foldableΒ solar
SpecificationΒ Power:Β
40WΒ WorkingΒ voltage:Β 18VΒ
OpenΒ circuitΒ voltage:Β 21.6VΒ
MaximumΒ workingΒ current:Β 2.22AΒ
shortΒ circuitΒ current:Β 2.44AΒ
WorkingΒ temperature:Β -20Β βΒ ~Β +Β 60Β β;Β
FoldingΒ size:Β 410X340X10mmΒ
ExpandΒ Size:680X410X4mmΒ
WeightΒ :Β 1.1kgΒ
USBΒ outputΒ :Β 5V/2AΒ USBΒ
DCΒ output:18VΒ DC5521Β
PackingΒ list:
1*40wΒ FoldableΒ SolarΒ Panel
1*1.3metersΒ CigaretteΒ lighterΒ withΒ DCΒ cable
1*Β 0.5mΒ DCΒ cable
10*DCΒ adapter
1*1.3metersΒ DCΒ cableΒ withΒ alligatorΒ clip

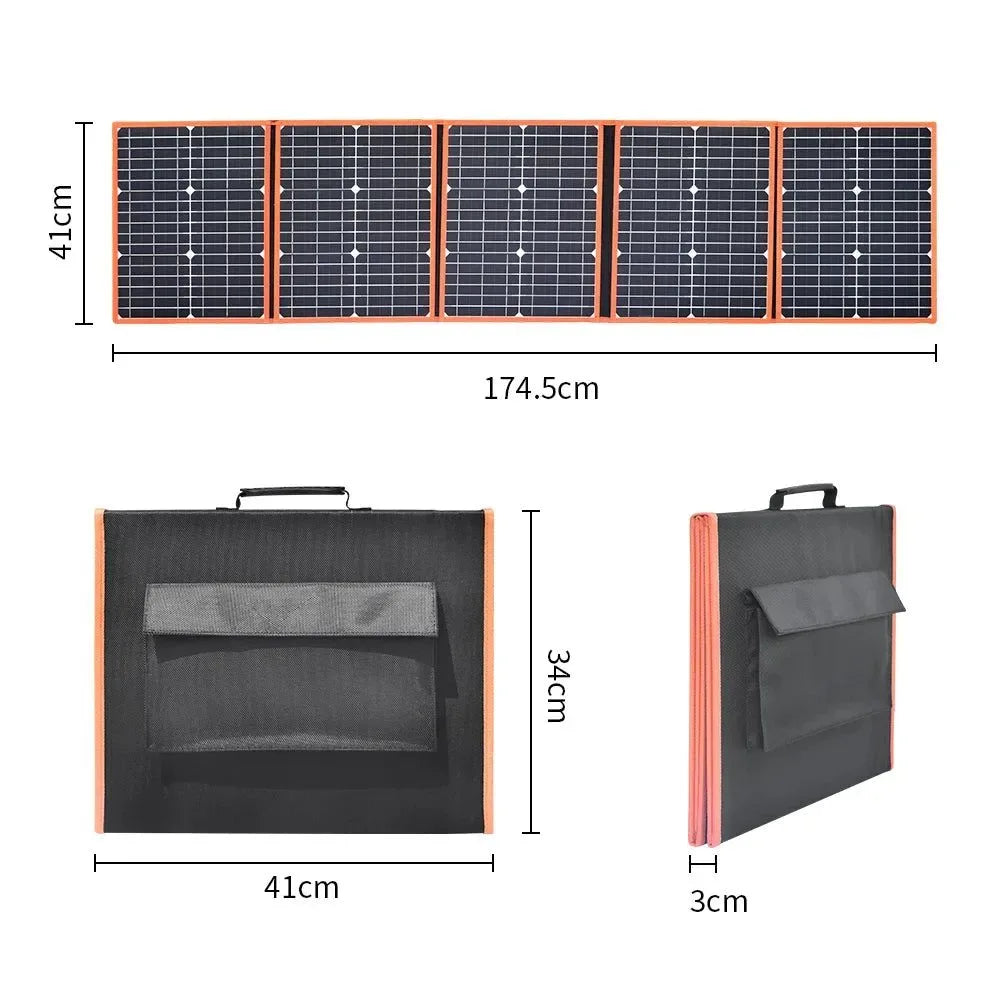

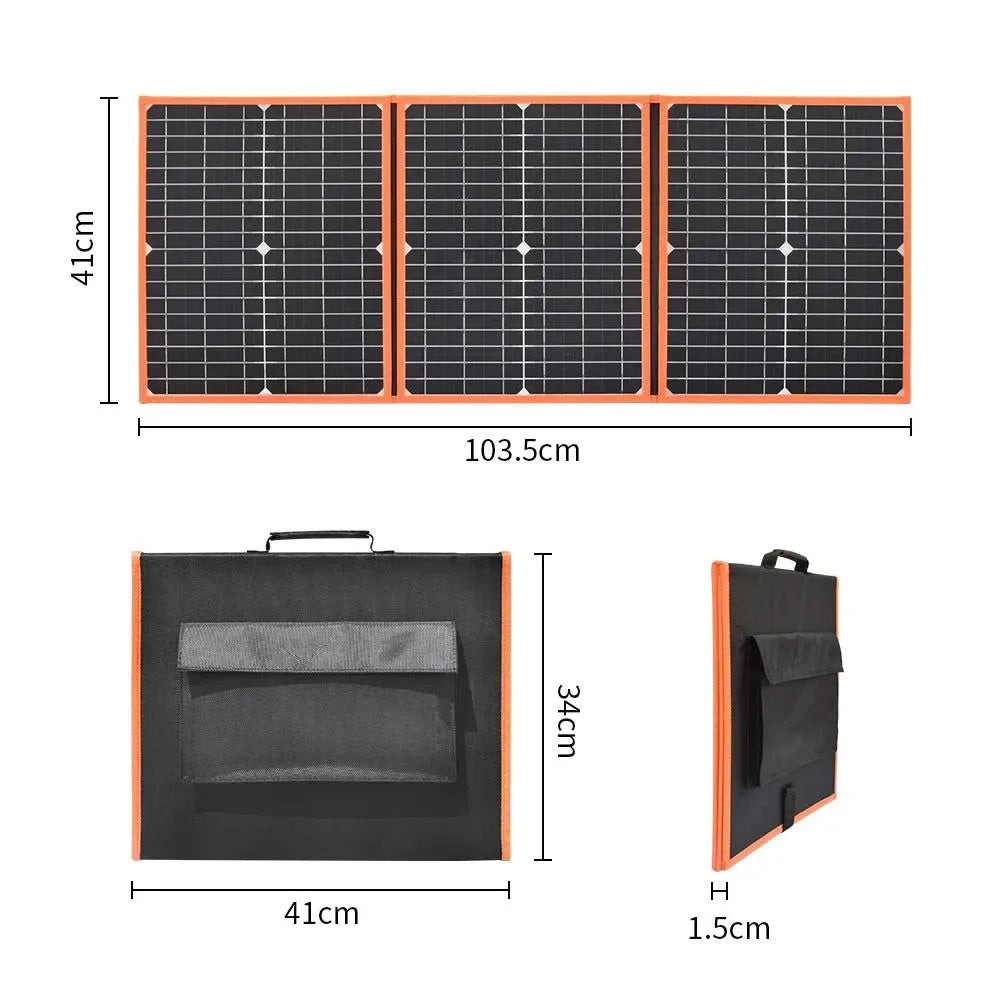

60Β wattΒ foldableΒ solar
Power:Β 60W
WorkingΒ voltage:Β 18V
Open-circuitΒ voltage:Β 21.6V
MaximumΒ workingΒ current:Β 4.44A
ShortΒ circuitΒ current:Β 4.88A
WorkingΒ temperature:Β -20Β βΒ ~Β +Β 60Β β
FoldableΒ Size:410X340X15mm
ExpandΒ Size:1035X410X3mm
WeightΒ :Β 2.1kg

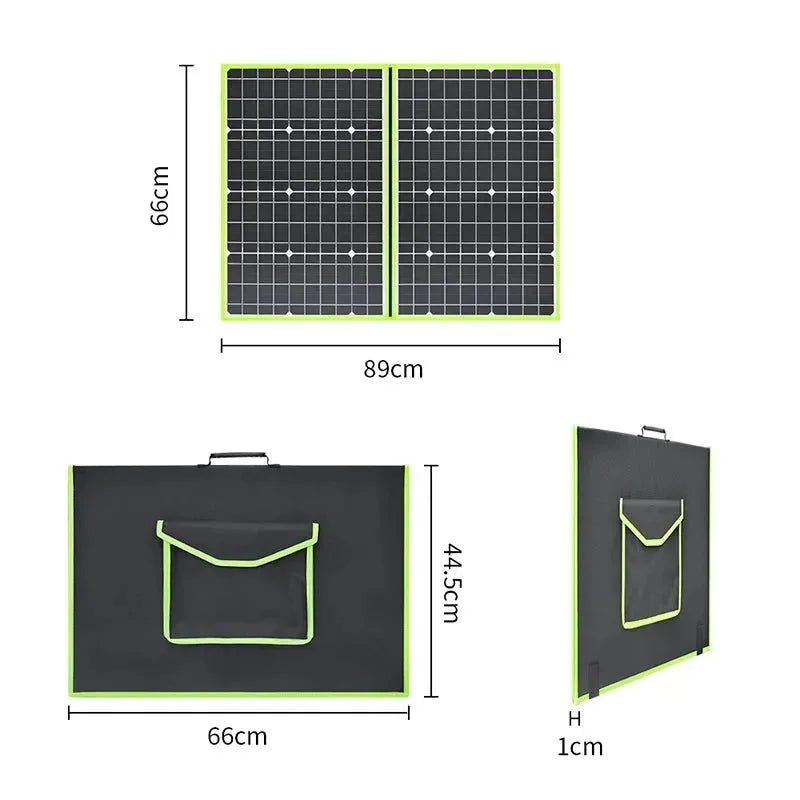

100Β wattΒ foldableΒ solar
Β Specifications:
1.Β 100wΒ SolarΒ Panel
MaximumΒ Power:Β 100w
OptimumΒ OperatingΒ VoltageΒ (Vmp):Β 20V
OptimumΒ OperatingΒ CurrentΒ (Imp):Β 5A
Open-CircuitΒ voltageΒ (Voc):Β 24V
Short-CircuitΒ CurrentΒ (Isc):Β 5.5A
Efficiency:Β 19.8%
FoldΒ Size:Β 660X445X10mm,Β ExpensionΒ Size:Β 890X660X3mm
Weight:Β 2.5kg
OperatingΒ temperature:Β -20βΒ ~Β +Β 60β
STC(StandardΒ TestingΒ Condition):IrradianceΒ 1000w/m2Β TemperatureΒ 25βΒ AM=1.5Β

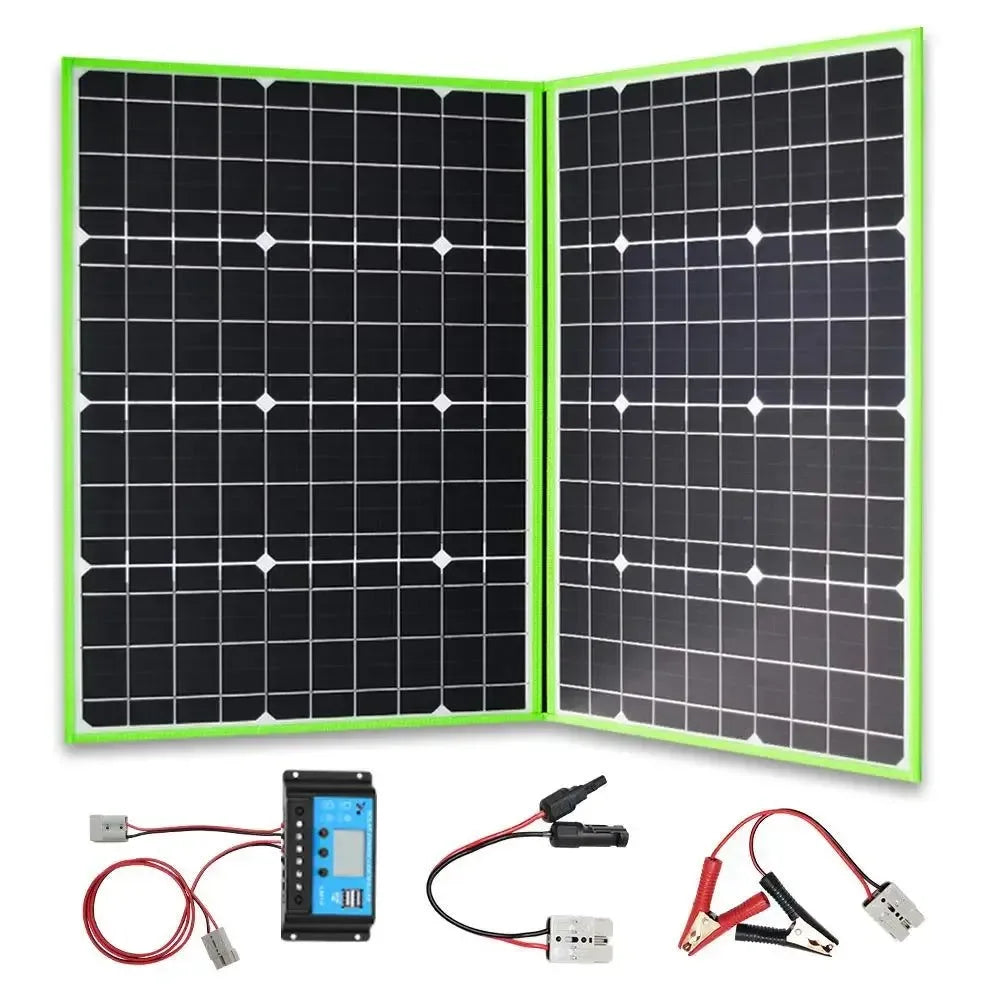

PackageΒ Listing:
1.Β 1Β xΒ 100wΒ foldableΒ solarΒ panel (Black or green side Random delivery)
2.Β 1Β xΒ 10AΒ solarΒ controllerΒ withΒ 0.2Β mΒ wireΒ andΒ 1.5Β mΒ wire
3.Β 0.2mΒ 2.5mm2Β alligatorΒ clipΒ cable
4.Β 0.2mΒ 2.5mm2Β PVΒ cableΒ

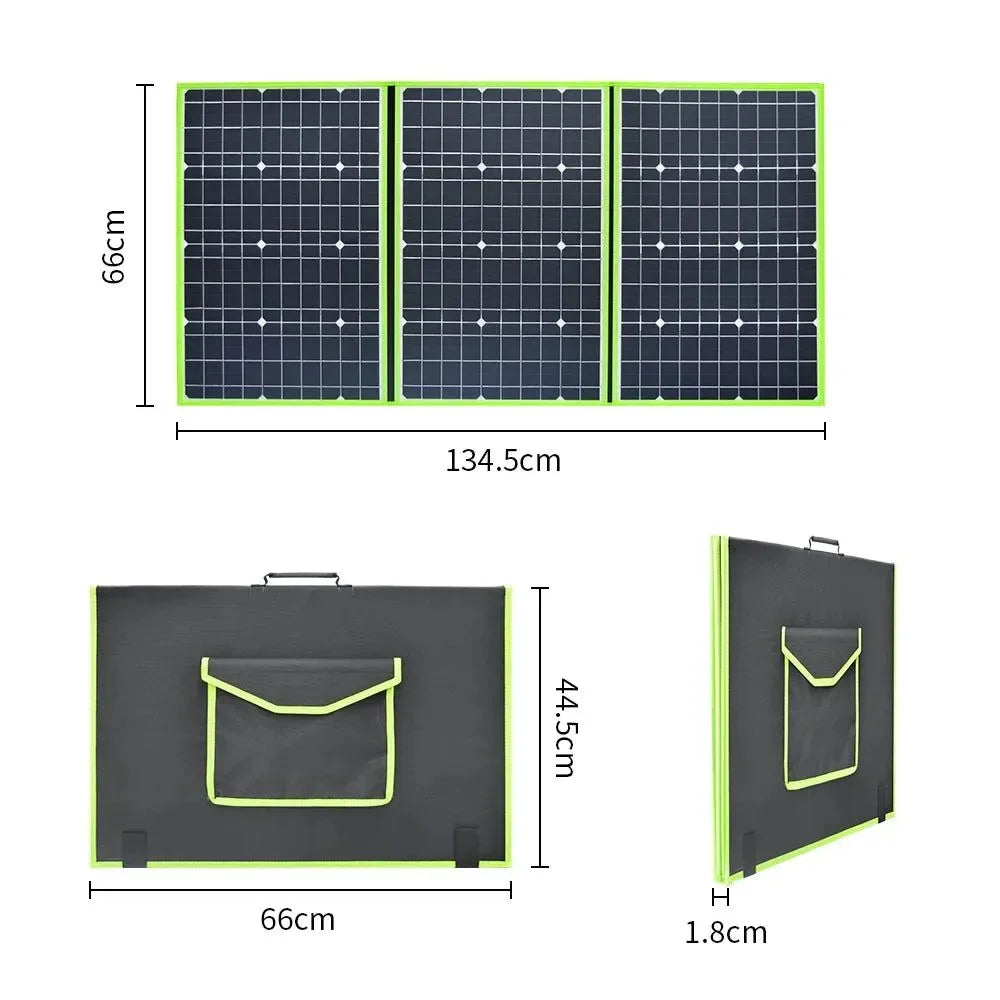

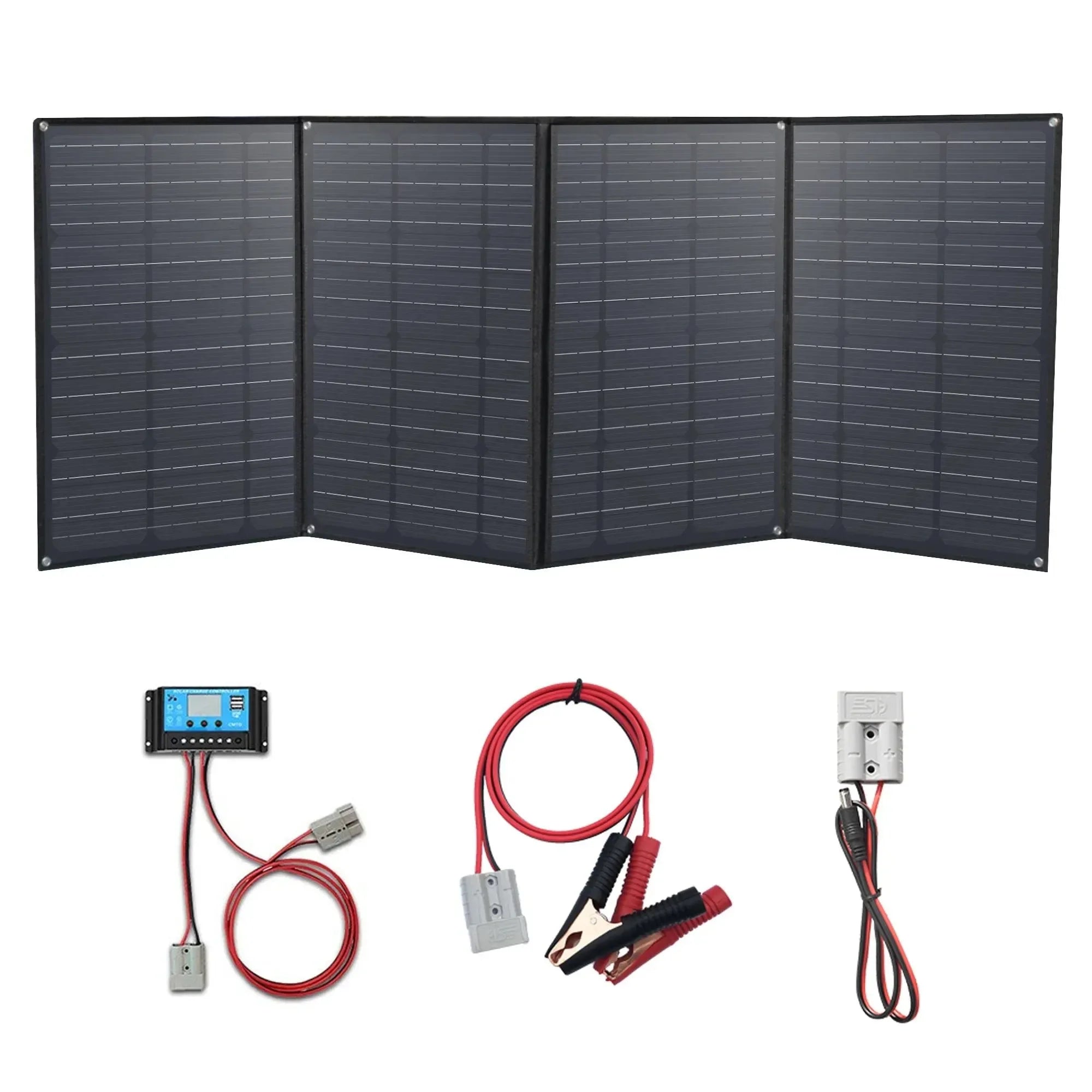

200Β wattΒ foldableΒ solar
Β Specifications:
1. Solar Panel Charger
Maximum Power: 200w
Optimum Operating Voltage (Vmp): 20V
Optimum Operating Current (Imp): 10A
Open-Circuit voltage (Voc): 24V
Short-Circuit Current (Isc): 12A
Efficiency: 19.8%
Fold Size: 660X445X20mm, Expension Size: 1795X660X3mm
Weight: 5.15kg
Operating temperature: -20β ~ + 60β
STC(Standard Testing Condition): Irradiance 1000w/m2 Temperature 25β AM=1.5
Package Listing:
1. 1 x 200w foldable solar panel Β Black or green side shipped randomly
2. 1 x 20A solar controller with 0.2 m wire and 1.5 m wire
3. 0.2m 2.5mm2 alligator clip cable
4. 0.2m 2.5mm2 PV cable
OR
Β
150Β WattΒ foldableΒ solar
1.Β Material:Β MonocrystallineΒ siliconΒ cell;
2.Β WorkingΒ voltage:Β 18V
OpenΒ circuitΒ voltage:Β 21.6V
3.Β Power:Β 150W;
4.Β MaximumΒ workingΒ current:7.9A
shortΒ circuitΒ current:Β 9.1A
5.Β WorkingΒ temperature:Β -20Β βΒ ~Β +Β 60Β β;
6.Β size:Β fold:Β 833X505X10mmΒ Β
unfold:1015X833X4mm;
7.Β WeightΒ :Β 3660g;
8.Β BeltΒ stitchingΒ pocketΒ withΒ 0.5MΒ SAEΒ connectorΒ cable;Β

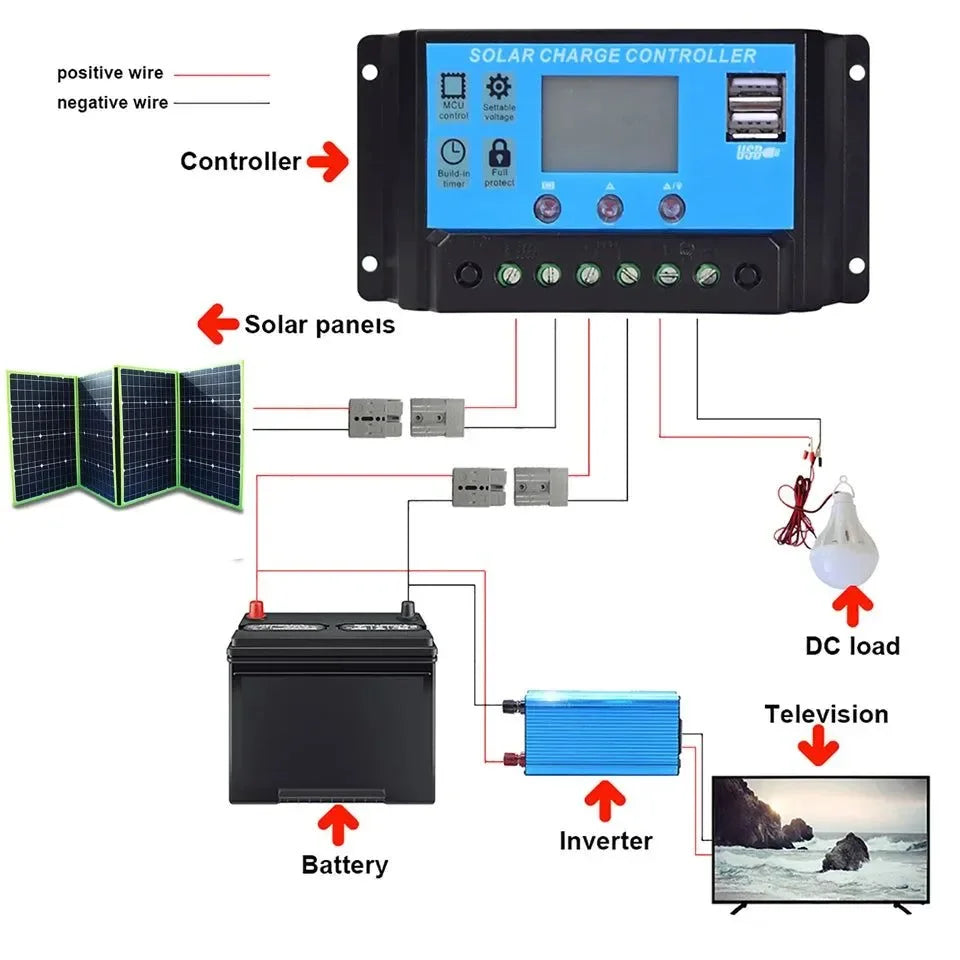

Β ControllerΒ connectionΒ instructions
aΒ BeforeΒ connectingΒ theΒ solarΒ panel,Β pleaseΒ connectΒ theΒ controllerΒ toΒ theΒ batteryΒ first.Β ConnectingΒ theΒ solarΒ panelΒ withoutΒ connectingΒ theΒ batteryΒ mayΒ causeΒ theΒ controllerΒ toΒ burnΒ outΒ andΒ failΒ toΒ display.
bΒ AfterΒ theΒ controllerΒ isΒ connectedΒ toΒ theΒ storageΒ battery,Β connectΒ theΒ above-mentionedΒ seriesΒ orΒ parallelΒ solarΒ panelsΒ toΒ theΒ controllerΒ throughΒ theΒ transferΒ cable.
cΒ Finally,Β connectΒ theΒ requiredΒ DCΒ loadΒ toΒ theΒ loadΒ endΒ ofΒ theΒ controller.Β IfΒ theΒ loadΒ doesΒ notΒ work,Β pressΒ theΒ thirdΒ buttonΒ ofΒ theΒ controller.
dΒ AccordingΒ toΒ theΒ controllerΒ manual,Β adjustΒ theΒ parametersΒ youΒ need.
Β PrecautionsΒ forΒ installationΒ ofΒ solarΒ system
aΒ WhenΒ connectingΒ thisΒ solarΒ system,Β firstΒ connectΒ theΒ controllerΒ toΒ theΒ battery,Β andΒ thenΒ connectΒ theΒ solarΒ panel.Β DoΒ notΒ reverseΒ theΒ connectionΒ order.
bΒ PleaseΒ installΒ theΒ controllerΒ inΒ aΒ well-ventilatedΒ areaΒ suchΒ asΒ indoorsΒ orΒ shadowsΒ toΒ avoidΒ exposureΒ ofΒ componentsΒ andΒ preventΒ waterΒ fromΒ enteringΒ theΒ controller.
cΒ TheΒ totalΒ powerΒ ofΒ theΒ solarΒ panelΒ andΒ DCΒ loadΒ cannotΒ beΒ greaterΒ thanΒ theΒ ratedΒ powerΒ ofΒ theΒ controllerΒ (voltageΒ ΓΒ current),Β otherwiseΒ thereΒ mayΒ beΒ aΒ riskΒ ofΒ burningΒ theΒ controller.
dΒ TheΒ inverterΒ cannotΒ beΒ connectedΒ toΒ theΒ controller,Β butΒ mustΒ beΒ connectedΒ toΒ theΒ battery.
eΒ AfterΒ installation,Β checkΒ whetherΒ allΒ lineΒ connectionsΒ areΒ tightΒ toΒ avoidΒ theΒ dangerΒ ofΒ heatΒ accumulationΒ dueΒ toΒ virtualΒ connection.
fΒ TheΒ positiveΒ andΒ negativeΒ polesΒ ofΒ theΒ solarΒ panelΒ inΒ theΒ sameΒ seriesΒ connectionΒ cannotΒ beΒ short-circuitedΒ toΒ preventΒ damageΒ toΒ theΒ solarΒ panel.
gΒ TheΒ positiveΒ andΒ negativeΒ polesΒ ofΒ theΒ controllerΒ andΒ batteryΒ shouldΒ beΒ checkedΒ clearly.Β DoΒ notΒ connectΒ theΒ positiveΒ andΒ negativeΒ polesΒ inΒ reverse
HowΒ toΒ useΒ rechargeableΒ batteries:
β Β FirstΒ connectΒ theΒ controllerΒ batteryΒ terminalΒ lineΒ withΒ theΒ crocodileΒ clipΒ line.
β‘Β ClipΒ theΒ redΒ andΒ blackΒ clipsΒ ofΒ theΒ crocodileΒ clipΒ toΒ theΒ positiveΒ andΒ negativeΒ terminalsΒ ofΒ theΒ battery,Β respectively.
β’Β ConnectΒ theΒ outputΒ lineΒ ofΒ theΒ solarΒ foldingΒ bagΒ withΒ theΒ photovoltaicΒ inputΒ lineΒ ofΒ theΒ controller.
β£Β IfΒ thereΒ isΒ aΒ DCΒ load,Β connectΒ theΒ DCΒ loadΒ toΒ theΒ controller.
β€Β PlaceΒ theΒ solarΒ foldingΒ bagΒ inΒ theΒ sun,Β andΒ tryΒ toΒ makeΒ theΒ panelΒ faceΒ theΒ sunΒ asΒ muchΒ asΒ possibleΒ toΒ preventΒ theΒ obstruction.
β₯Β AdjustΒ theΒ controllerΒ parametersΒ (setΒ theΒ parametersΒ accordingΒ toΒ theΒ controller'sΒ instructions,Β orΒ setΒ theΒ parametersΒ accordingΒ toΒ yourΒ ownΒ requirements,Β andΒ useΒ theΒ defaultΒ parameters).
HowΒ toΒ chargeΒ aΒ portableΒ mobileΒ powerΒ
supply:
β Β ConnectΒ theΒ controllerΒ batteryΒ terminalΒ cableΒ toΒ theΒ portableΒ powerΒ bankΒ adapterΒ first.
β‘Β ReplaceΒ theΒ chargingΒ headΒ ofΒ theΒ mobileΒ powerΒ adapterΒ withΒ aΒ matchingΒ interface.
β’Β PlugΒ theΒ replacedΒ chargingΒ cableΒ intoΒ theΒ chargingΒ portΒ ofΒ theΒ mobileΒ powerΒ supply.
NOTE:
WhenΒ thereΒ isΒ noΒ sunshine,Β theΒ lightΒ intensityΒ decreasesΒ toΒ startingΒ point.Β ThenΒ theΒ controllerΒ recognizesΒ theΒ startingΒ signalΒ afterΒ sixΒ minutes.Β TheΒ loadΒ willΒ startΒ toΒ workΒ accordingΒ toΒ theΒ settingΒ parameter.Β WhenΒ thereΒ isΒ sunshine,Β theΒ lightΒ intensityΒ risesΒ toΒ startingΒ point,Β andΒ thenΒ theΒ controllerΒ recognizesΒ theΒ closeΒ signalΒ afterΒ sixΒ minutes.Β TheΒ loadΒ willΒ stopΒ working.
OperatingΒ Instruction
InstallationΒ andΒ operationΒ ofΒ solarΒ cellΒ module
a).Β ClimaticΒ Conditions
InstallΒ PVΒ moduleΒ accordingΒ toΒ theΒ followingΒ conditions
AmbientΒ Temperature:Β οΌ20βΒ toΒ οΌΒ 40β.
OperatingΒ Temperature:Β οΌ20βΒ toΒ οΌΒ 80β.
BorneΒ SnowΒ Pressure:Β lessΒ thanΒ 2000Pa
BorneΒ WindΒ Pressure:Β lessΒ thanΒ 3000Pa
WaterΒ proof:Β don'tΒ soakΒ theΒ PVΒ moduleΒ inΒ waterΒ orΒ continuouslyΒ exposeΒ itΒ toΒ theΒ sprinklingΒ deviceΒ orΒ underΒ fountains.
CorrosionΒ resistance:Β exceptΒ forΒ corrosiveΒ saltΒ areaΒ andΒ sulfurousΒ area.
