How to Connect the Solar Kit?
1. Install the solar controller in the area you need. It is recommended that the controller be installed indoors in a cool area to extend the service life.
2. First connect the controller to the battery or mobile power supply by wire (note that the controller must first connect the battery or mobile power).
3. Install the solar panel in a sunny area, do not install in the shade of the trees or have other obstructed areas.
4. Connect the installed solar panel to the controller
5. Follow the instructions of the controller, set the parameters according to your needs, or use the default parameters.
40 watt foldable solar

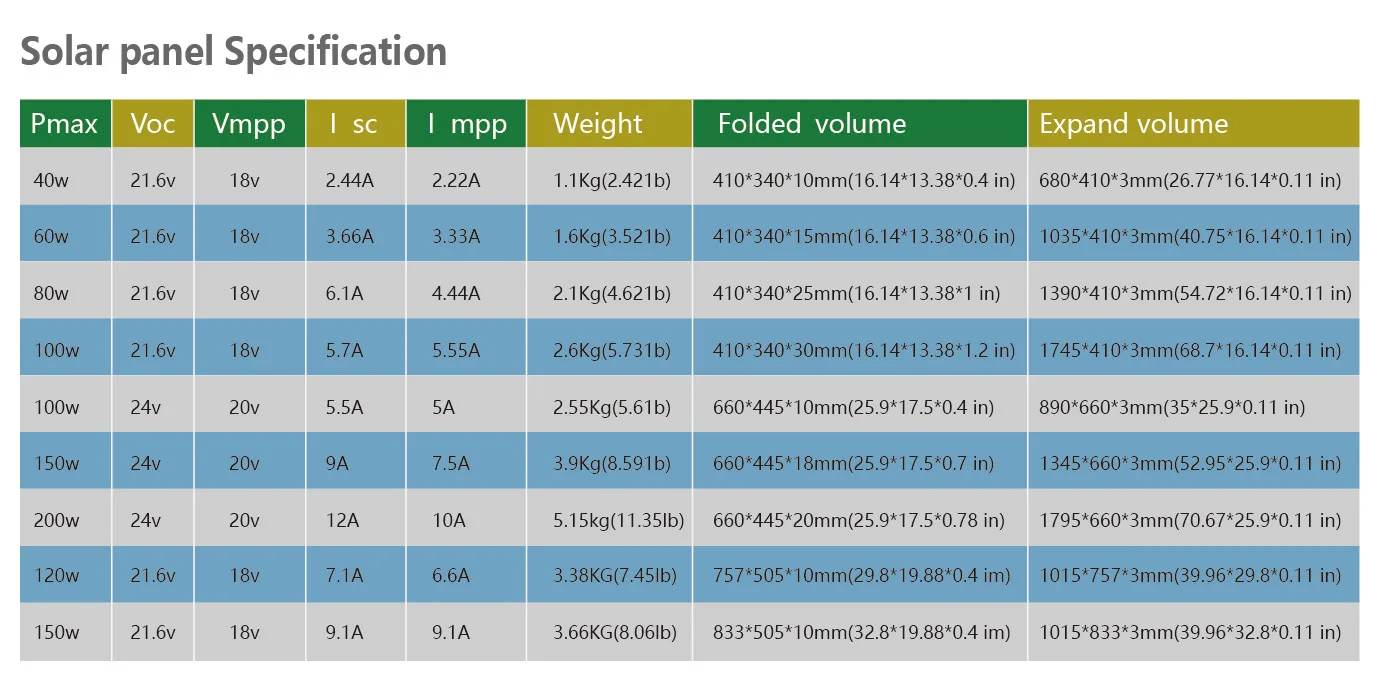

Specification Power:
40W Working voltage: 18V
Open circuit voltage: 21.6V
Maximum working current: 2.22A
short circuit current: 2.44A
Working temperature: -20 ℃ ~ + 60 ℃;
Folding size: 410X340X10mm
Expand Size:680X410X4mm
Weight : 1.1kg

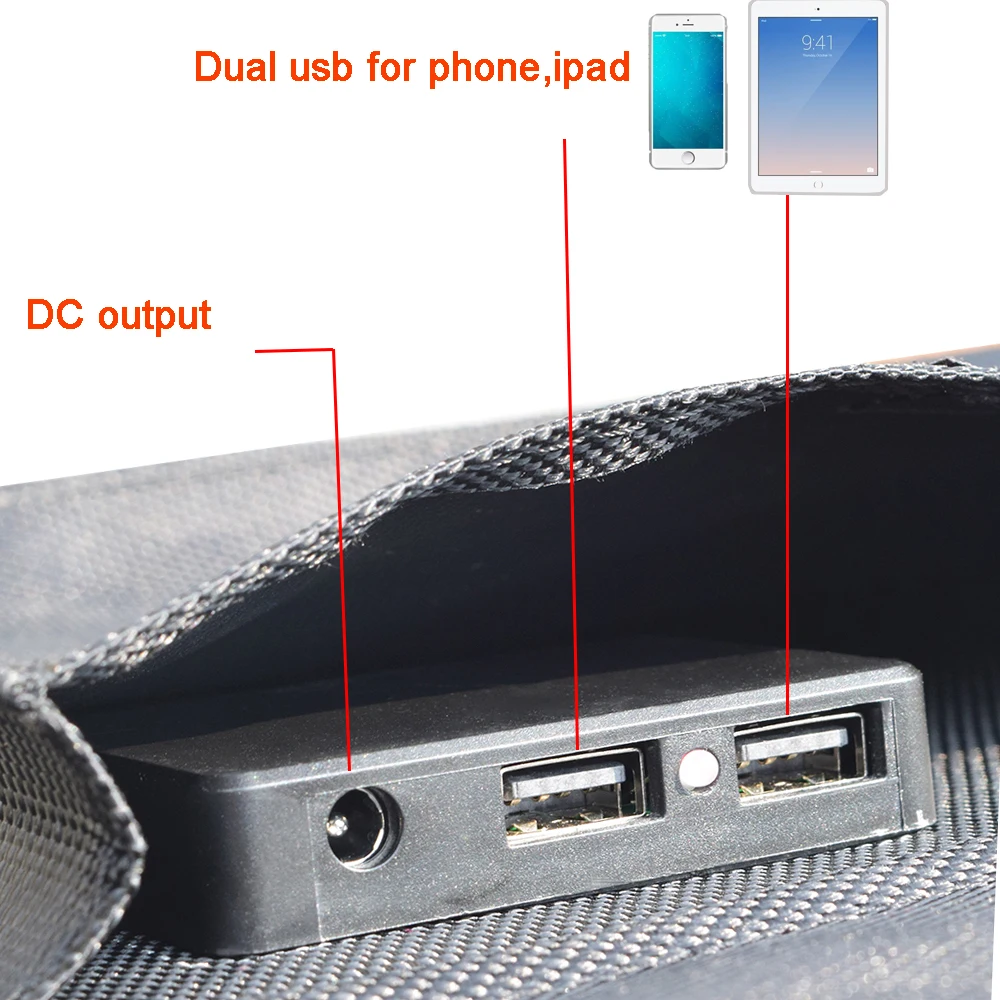

USB output : 5V/2A USB
DC output:18V DC5521

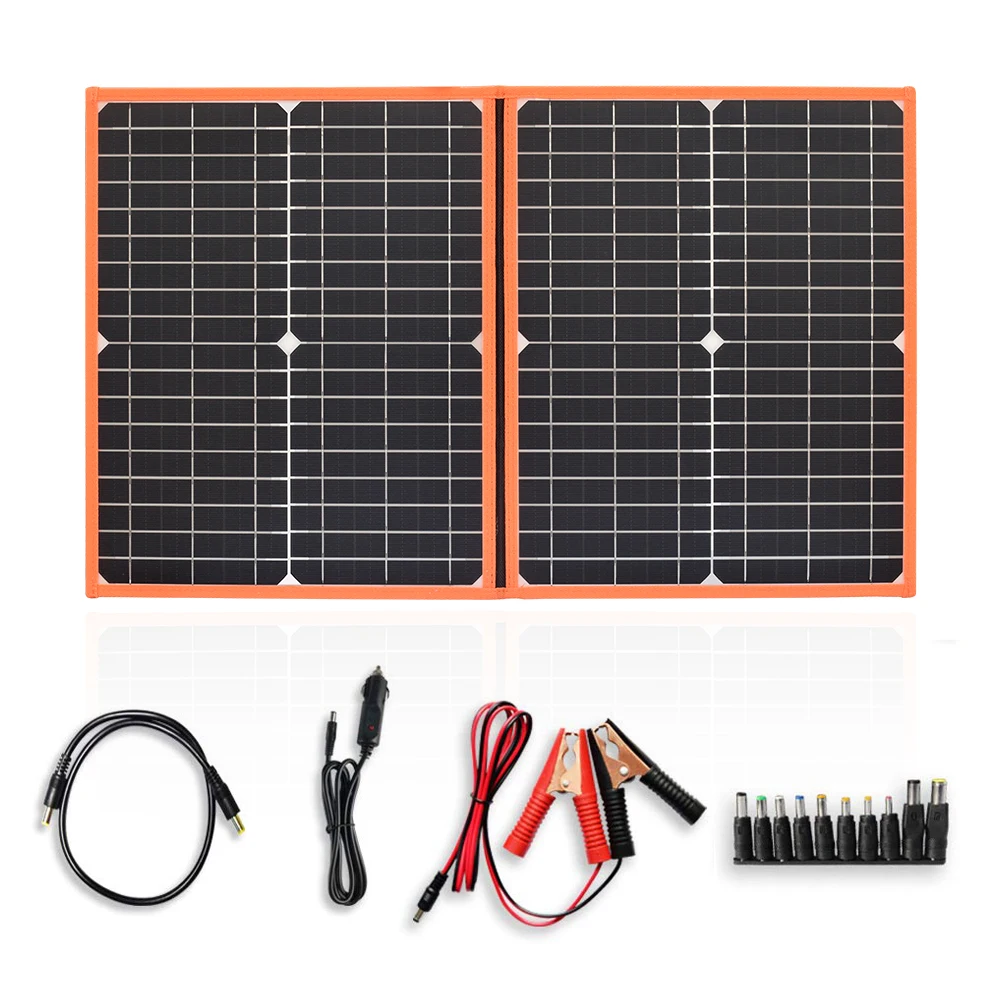

Packing list:
1*40w Foldable Solar Panel
1*1.3meters Cigarette lighter with DC cable
1* 0.5m DC cable
10*DC adapter
1*1.3meters DC cable with alligator clip
60 watt foldable solar
Power: 60W
Working voltage: 18V
Open-circuit voltage: 21.6V
Maximum working current: 4.44A
Short circuit current: 4.88A
Working temperature: -20 ℃ ~ + 60 ℃

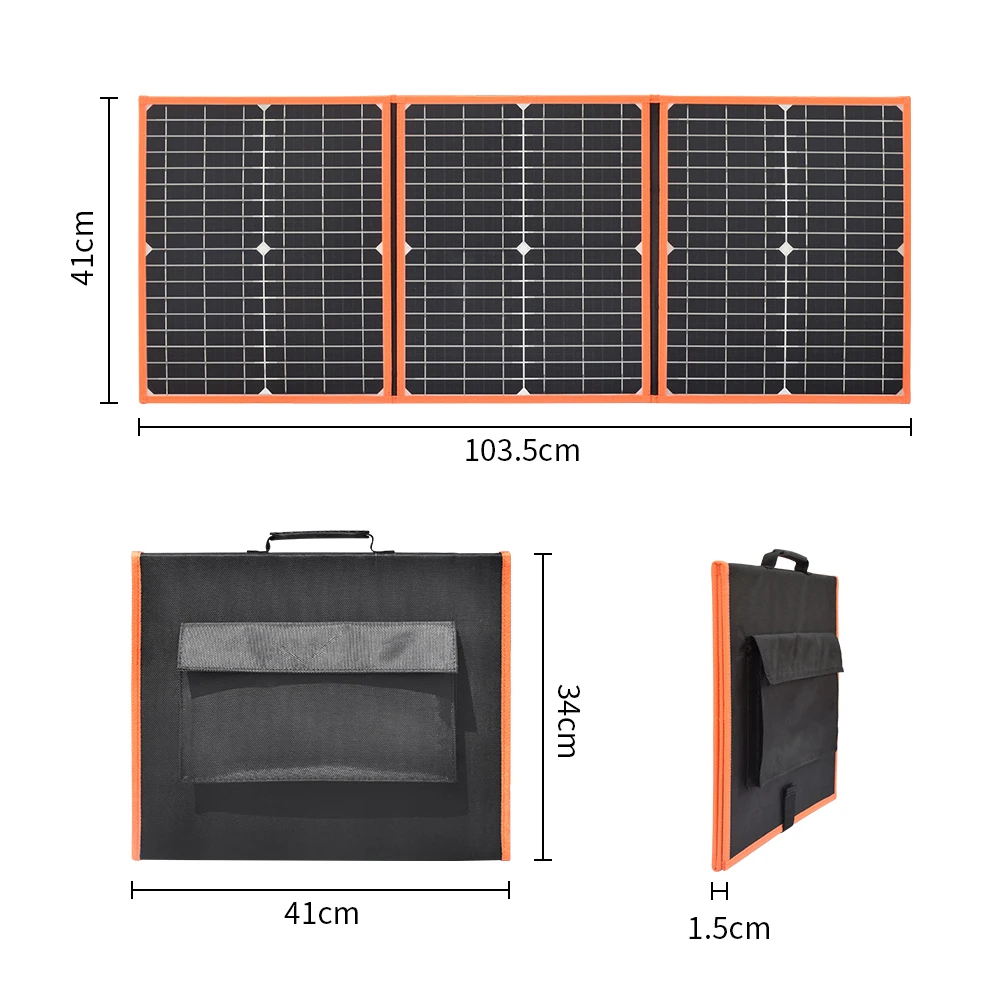

Foldable Size:410X340X15mm
Expand Size:1035X410X3mm
Weight : 2.1kg
100 watt foldable solar
Specifications:
1. 100w Solar Panel
Maximum Power: 100w
Optimum Operating Voltage (Vmp): 20V
Optimum Operating Current (Imp): 5A
Open-Circuit voltage (Voc): 24V
Short-Circuit Current (Isc): 5.5A
Efficiency: 19.8%

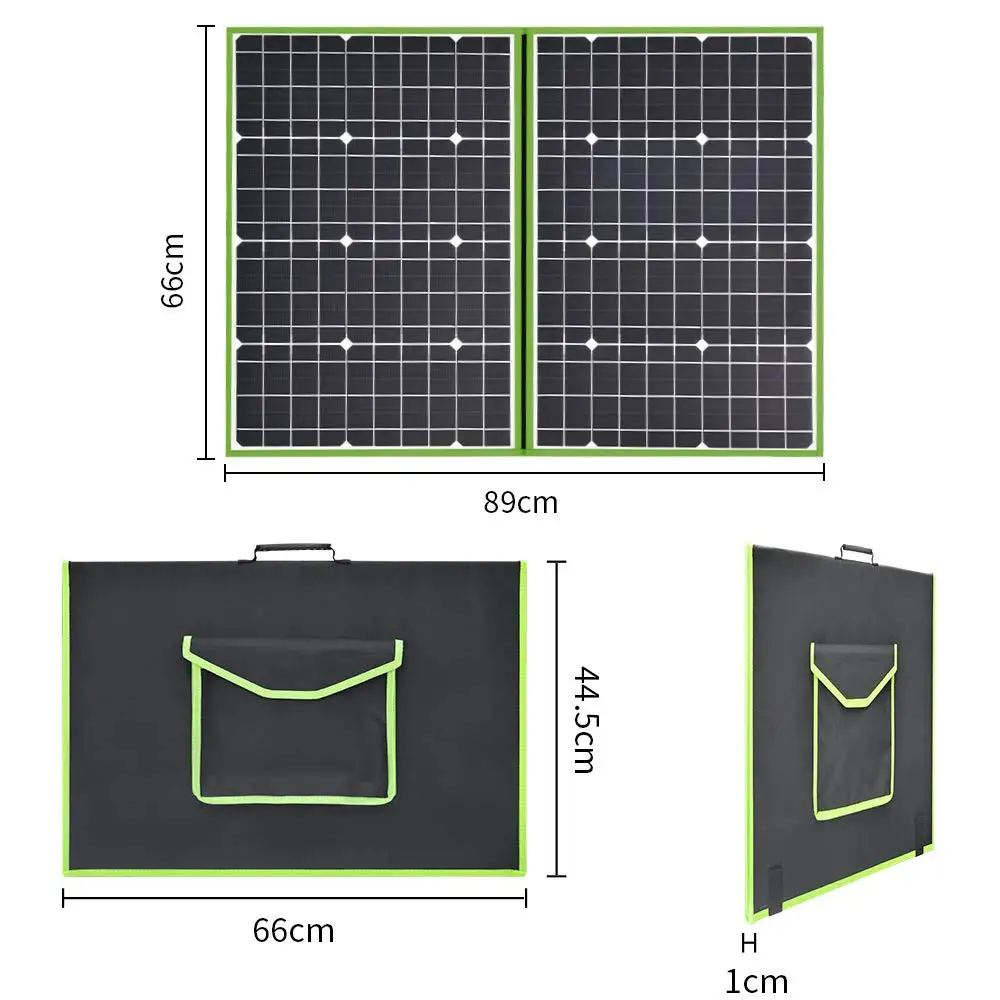

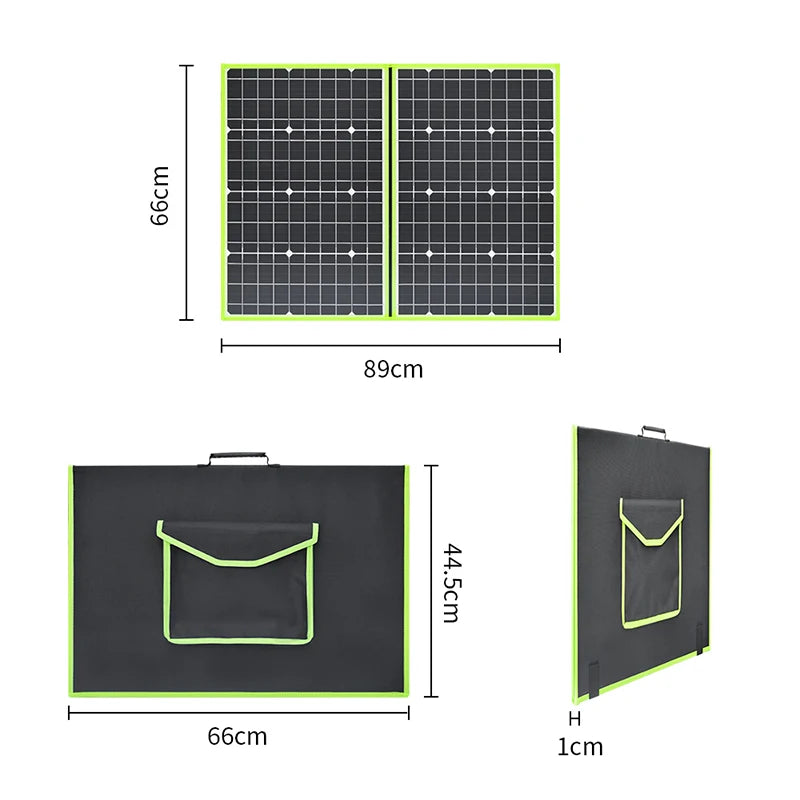

Fold Size: 660X445X10mm, Expension Size: 890X660X3mm
Weight: 2.5kg
Operating temperature: -20℃ ~ + 60℃
STC(Standard Testing Condition):Irradiance 1000w/m2 Temperature 25℃ AM=1.5

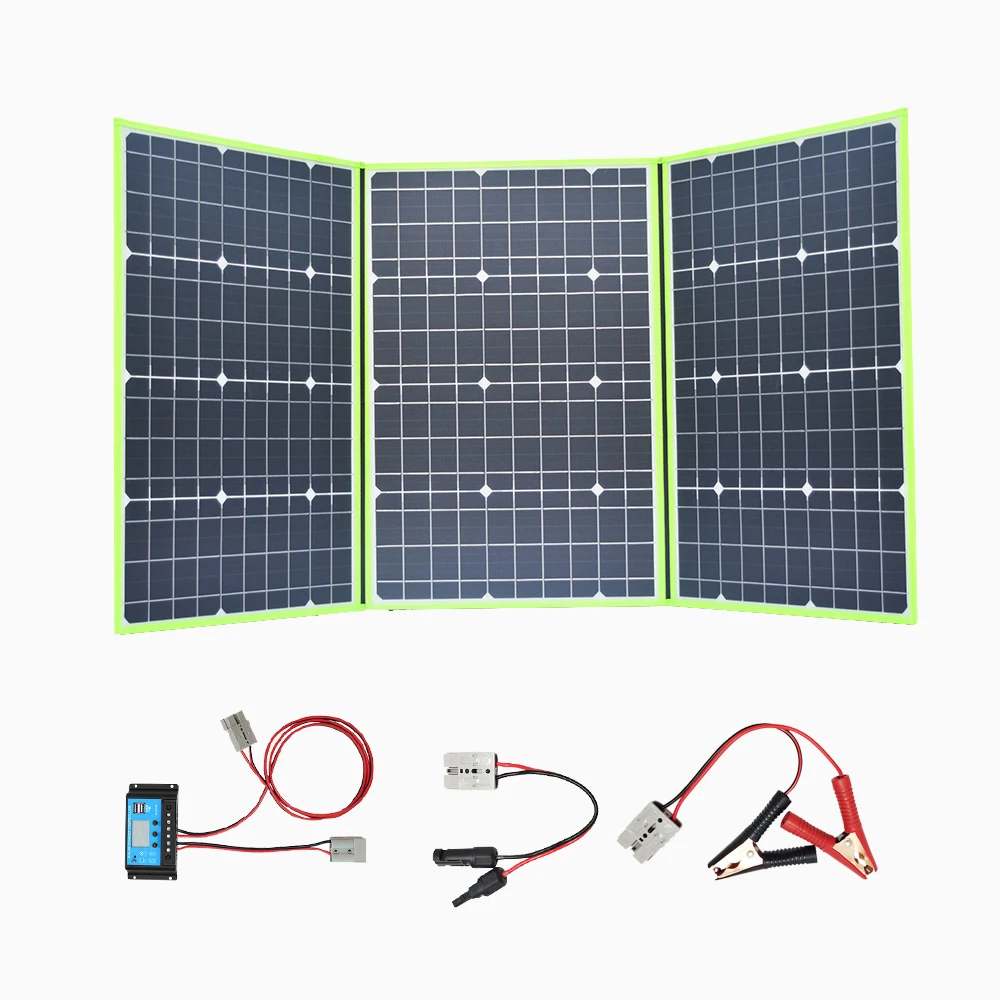

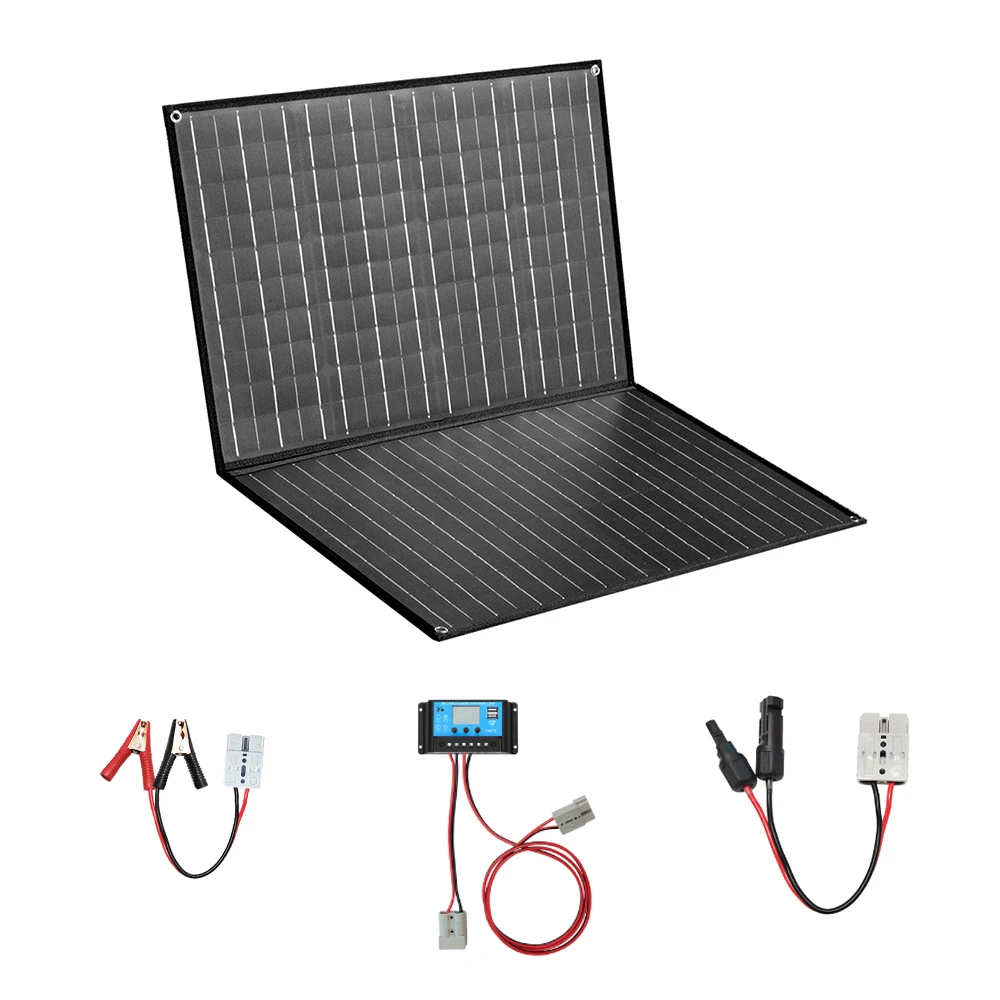

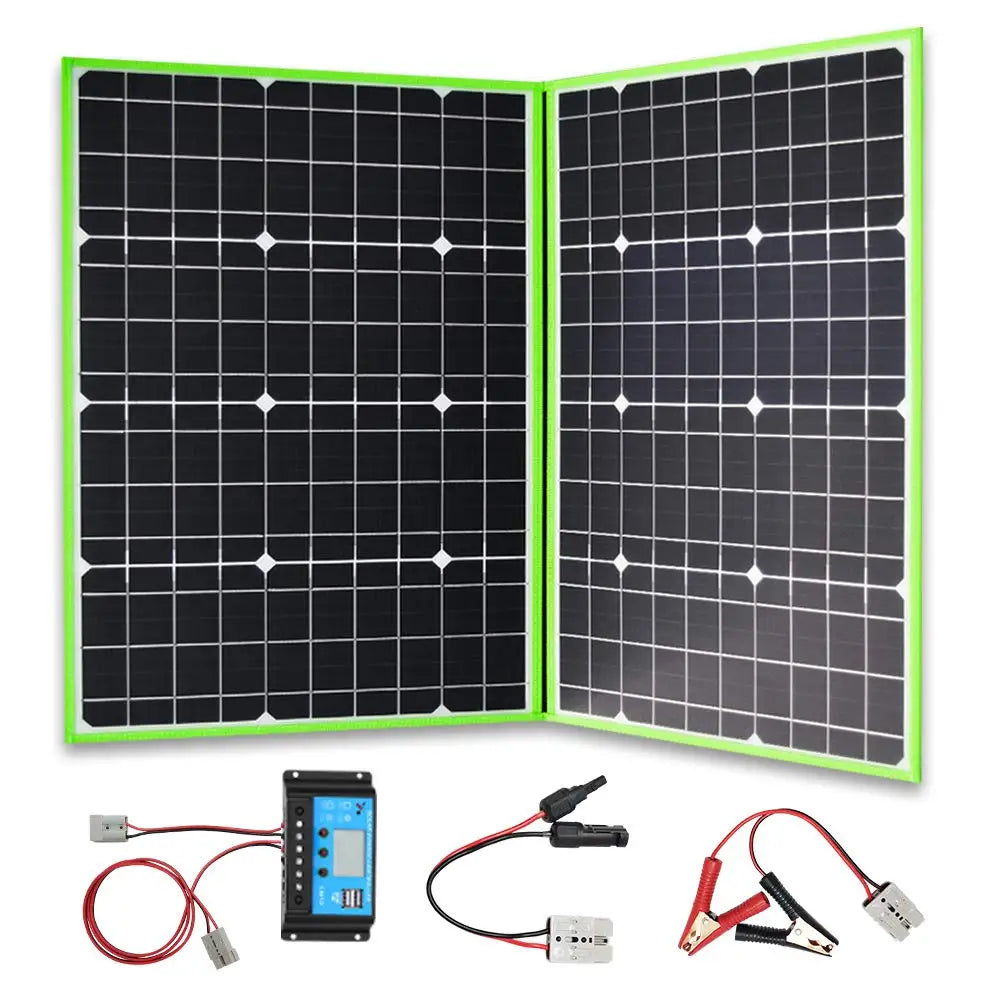

Package Listing:
1. 1 x 100w foldable solar panel (Black or green side Random delivery)
2. 1 x 10A solar controller with 0.2 m wire and 1.5 m wire
3. 0.2m 2.5mm2 alligator clip cable

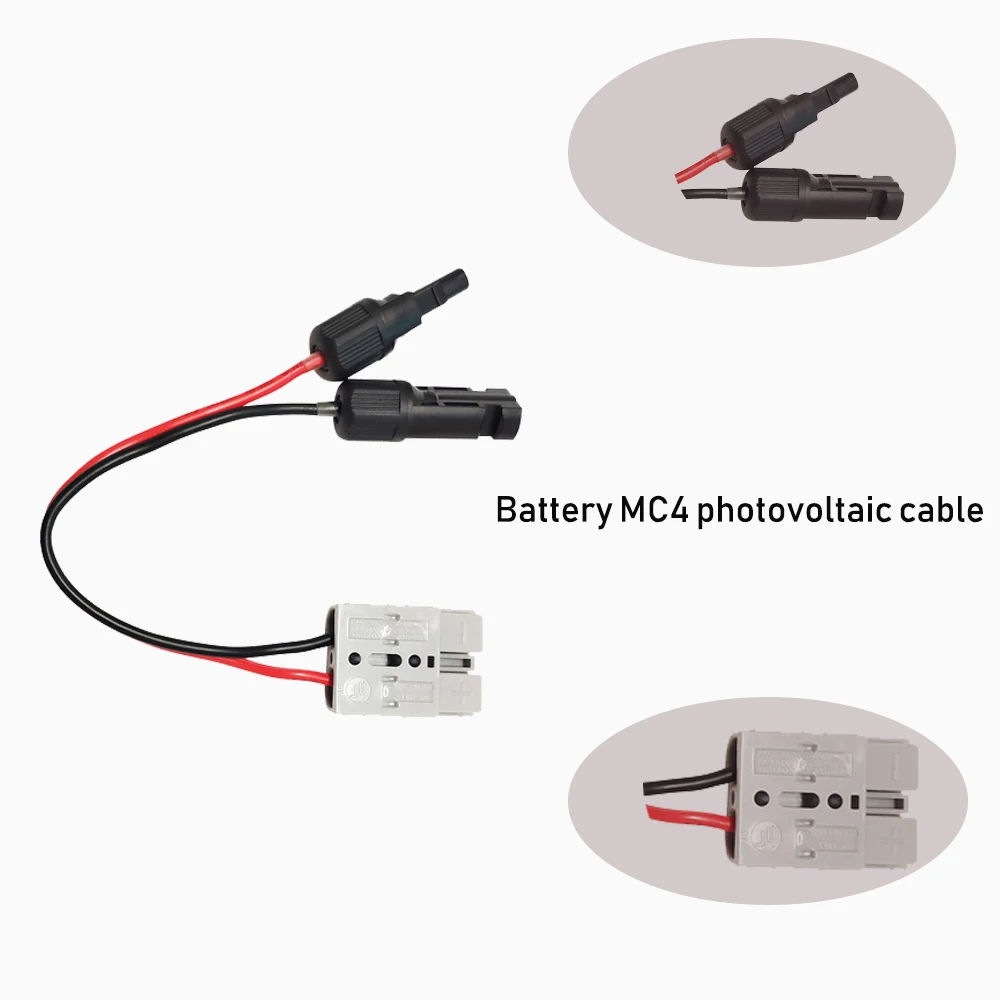

4. 0.2m 2.5mm2 PV cable
200 watt foldable solar
Specifications:
1. Solar Panel Charger
Maximum Power: 200w
Optimum Operating Voltage (Vmp): 20V
Optimum Operating Current (Imp): 10A
Open-Circuit voltage (Voc): 24V
Short-Circuit Current (Isc): 12A
Efficiency: 19.8%
Fold Size: 660X445X20mm, Expension Size: 1795X660X3mm
Weight: 5.15kg
Operating temperature: -20℃ ~ + 60℃
STC(Standard Testing Condition): Irradiance 1000w/m2 Temperature 25℃ AM=1.5

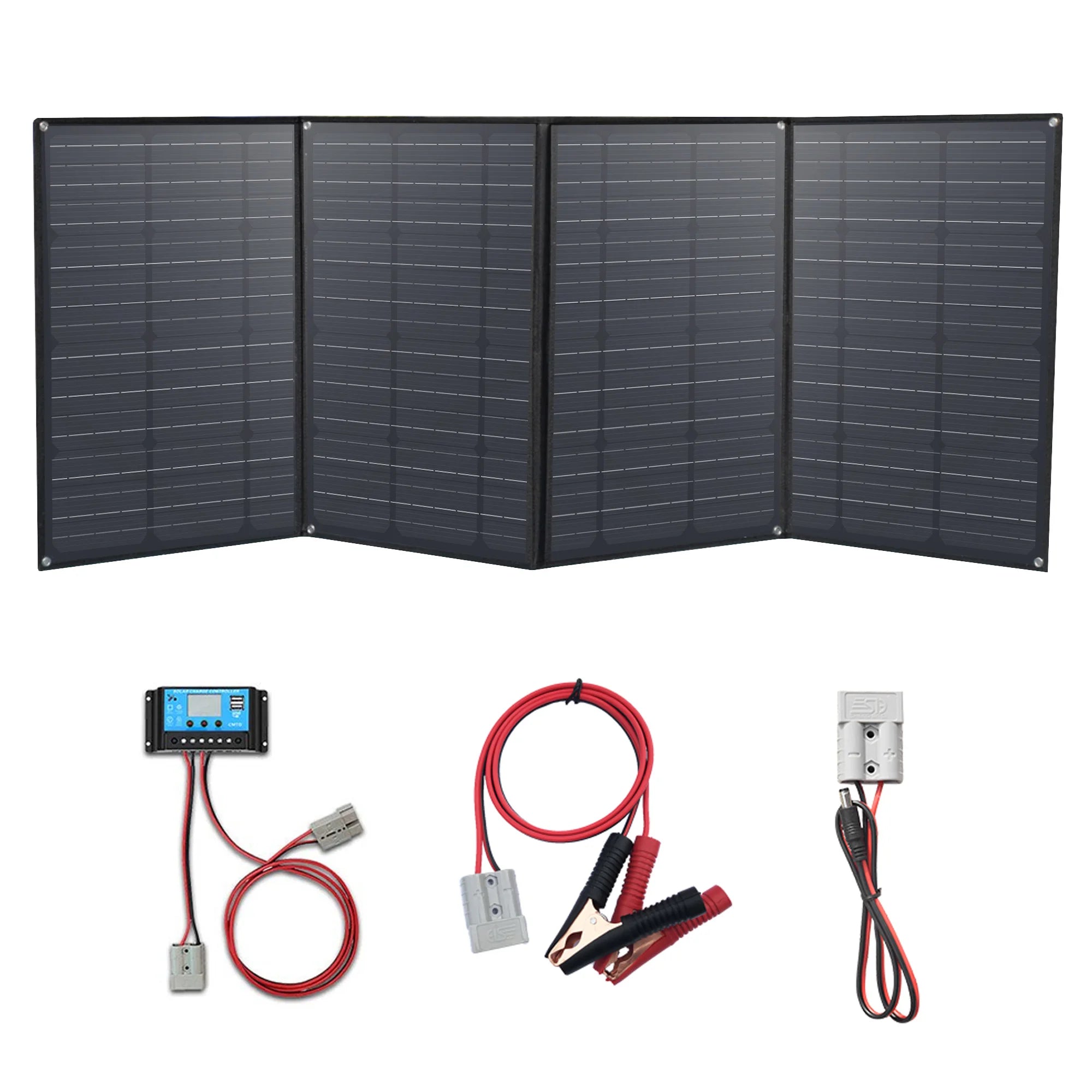

Package Listing:
1. 1 x 200w foldable solar panel Black or green side shipped randomly
2. 1 x 20A solar controller with 0.2 m wire and 1.5 m wire
3. 0.2m 2.5mm2 alligator clip cable
4. 0.2m 2.5mm2 PV cable
OR
150 Watt foldable solar
1. Material: Monocrystalline silicon cell;
2. Working voltage: 18V
Open circuit voltage: 21.6V
3. Power: 150W;
4. Maximum working current:7.9A
short circuit current: 9.1A
5. Working temperature: -20 ℃ ~ + 60 ℃;
6. size: fold: 833X505X10mm
unfold:1015X833X4mm;
7. Weight : 3660g;
8. Belt stitching pocket with 0.5M SAE connector cable;

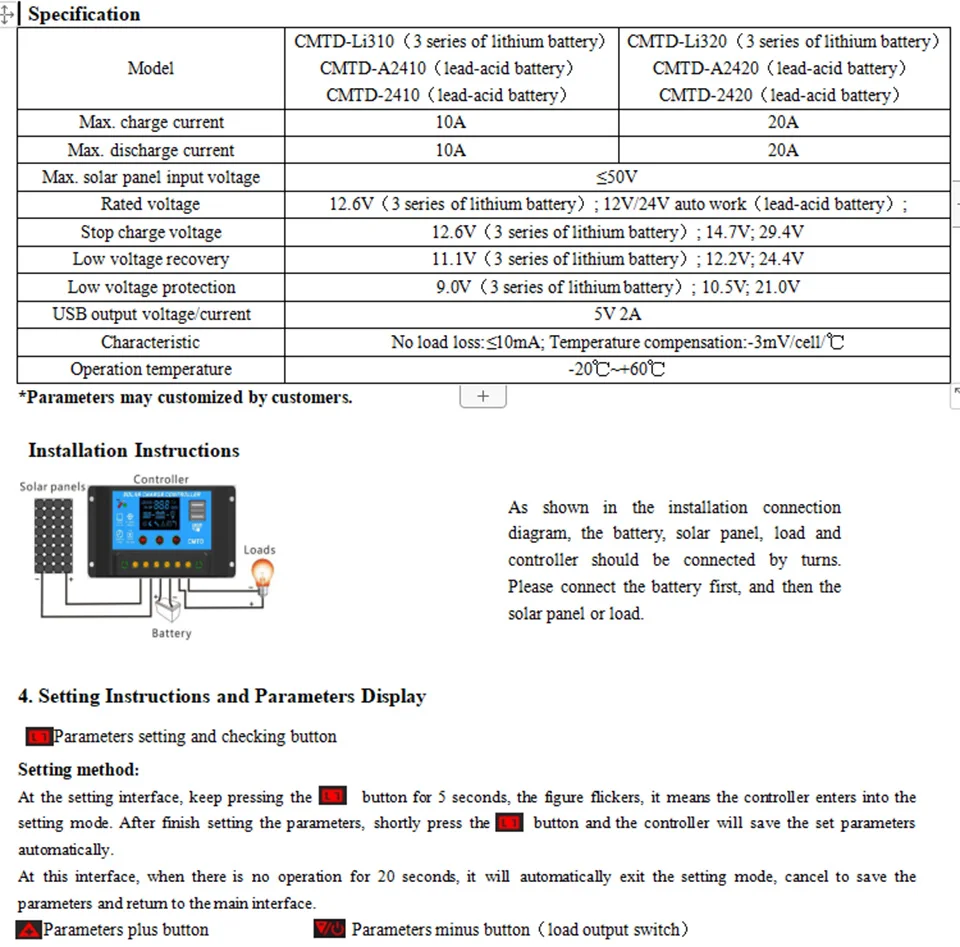

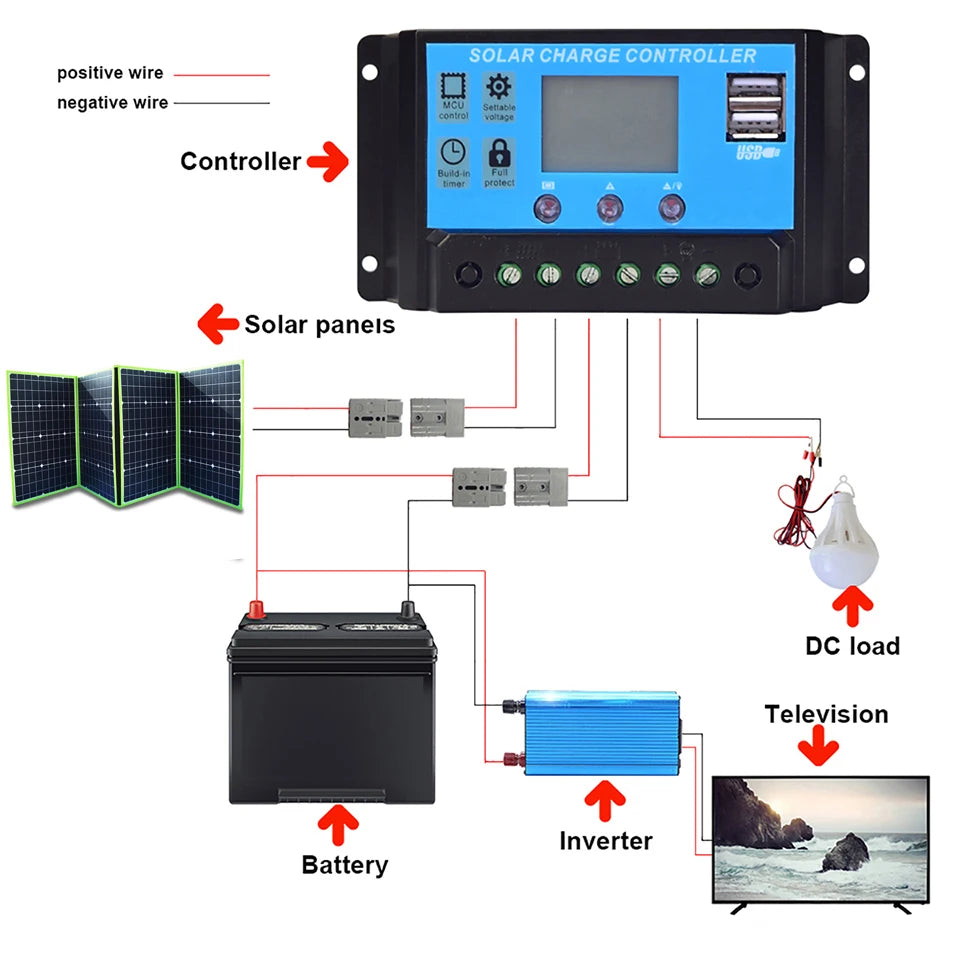

Controller connection instructions
a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display.
b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable.
c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller.

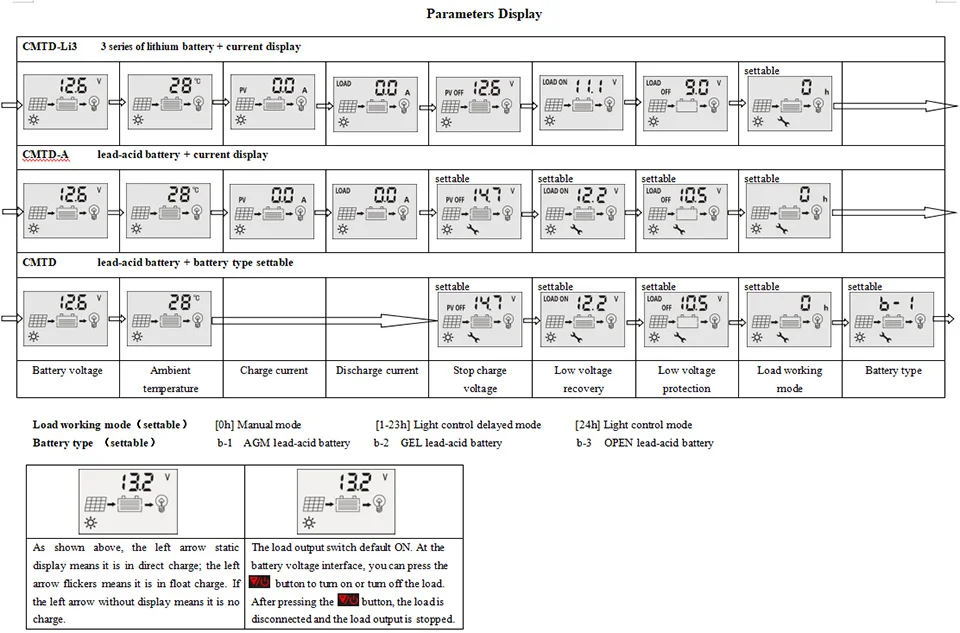

d According to the controller manual, adjust the parameters you need.
Precautions for installation of solar system
a When connecting this solar system, first connect the controller to the battery, and then connect the solar panel. Do not reverse the connection order.
b Please install the controller in a well-ventilated area such as indoors or shadows to avoid exposure of components and prevent water from entering the controller.
c The total power of the solar panel and DC load cannot be greater than the rated power of the controller (voltage × current), otherwise there may be a risk of burning the controller.
d The inverter cannot be connected to the controller, but must be connected to the battery.
e After installation, check whether all line connections are tight to avoid the danger of heat accumulation due to virtual connection.
f The positive and negative poles of the solar panel in the same series connection cannot be short-circuited to prevent damage to the solar panel.
g The positive and negative poles of the controller and battery should be checked clearly. Do not connect the positive and negative poles in reverse
How to use rechargeable batteries:
① First connect the controller battery terminal line with the crocodile clip line.
② Clip the red and black clips of the crocodile clip to the positive and negative terminals of the battery, respectively.
③ Connect the output line of the solar folding bag with the photovoltaic input line of the controller.
④ If there is a DC load, connect the DC load to the controller.
⑤ Place the solar folding bag in the sun, and try to make the panel face the sun as much as possible to prevent the obstruction.
⑥ Adjust the controller parameters (set the parameters according to the controller's instructions, or set the parameters according to your own requirements, and use the default parameters).
How to charge a portable mobile power
supply:
① Connect the controller battery terminal cable to the portable power bank adapter first.
② Replace the charging head of the mobile power adapter with a matching interface.
③ Plug the replaced charging cable into the charging port of the mobile power supply.
NOTE:
When there is no sunshine, the light intensity decreases to starting point. Then the controller recognizes the starting signal after six minutes. The load will start to work according to the setting parameter. When there is sunshine, the light intensity rises to starting point, and then the controller recognizes the close signal after six minutes. The load will stop working.
Operating Instruction
Installation and operation of solar cell module
a). Climatic Conditions
Install PV module according to the following conditions
Ambient Temperature: －20℃ to ＋ 40℃.
Operating Temperature: －20℃ to ＋ 80℃.
Borne Snow Pressure: less than 2000Pa
Borne Wind Pressure: less than 3000Pa
Water proof: don't soak the PV module in water or continuously expose it to the sprinkling device or under fountains.
Corrosion resistance: except for corrosive salt area and sulfurous area.
