Harness the power of the sun with the Foldable Solar Panel, your reliable companion for on-the-go power needs. This portable photovoltaic solar panel offers a versatile and eco-friendly solution for charging 12V batteries and powering various devices during outdoor adventures such as hiking. With foldable and flexible design options, high module efficiency, and multiple output voltage choices, this solar panel provides efficient charging performance and adaptability for all your power requirements.
Specifications:
-
Origin: Mainland China
-
Number of Panels: 1
-
Flexible Solar Panel: Yes
-
Foldable Solar Panel: Yes
-
Type: Solar Panel
-
Module Efficiency: 21.8%
-
Model Number: Solar Charger
-
Material: Monocrystalline Silicon
-
Nominal Capacity: 30W/40W/60W/100W/120W/150W/200W
-
Number of Cells: 72
-
Max. Power: 30W/40W/60W/100W/120W/150W/200W
-
is_customized: Yes
-
Certification: CE, FCC, RoHS, WEEE
-
Output Voltage (for different models):
- Foldable Solar Panel 40W: 18V/12V/5V
- Foldable Solar Panel 60W: 18V/12V/5V
- Foldable Solar Panel 100W: 20V/12V/5V
- Foldable Solar Panel 120W: 18V/12V/5V
- Foldable Solar Panel 150W: 18V/12V/5V
- Foldable Solar Panel 200W: 20V/12V/5V
-
Solar Power Output Current: 2A/3A/6A/8A/5A/10A
-
Material: Solar cell + 600D polyester
-
Features: Waterproof, Windproof, Semi-flexible
Key Features:
-
Versatile Charging: With multiple output voltage options, this solar panel is compatible with various devices and batteries, offering flexible charging solutions.
-
High Efficiency: The solar panel's high module efficiency of 21.8% ensures optimal energy conversion, maximizing charging performance even in low light conditions.
-
Portable Design: Foldable and flexible design options make this solar panel easy to carry and deploy, perfect for outdoor activities like hiking and camping.
-
Durable Construction: Made of monocrystalline silicon and durable polyester material, this solar panel is built to withstand harsh outdoor conditions, ensuring long-lasting performance.
-
Certified Quality: CE, FCC, RoHS, and WEEE certifications guarantee the quality, safety, and environmental compliance of the solar panel, providing peace of mind for users.
Why Choose the Foldable Solar Panel?
The Foldable Solar Panel offers a convenient and sustainable power solution for outdoor enthusiasts and adventurers. Whether you're hiking, camping, or traveling off the grid, this portable solar panel provides reliable charging for your devices and batteries, allowing you to stay connected and powered up wherever you go. With its high efficiency, durability, and versatile features, this solar panel is the ideal choice for eco-conscious individuals seeking off-grid power solutions.
Usage Tips:
-
Optimal Placement: Place the solar panel in direct sunlight for maximum charging efficiency.
-
Secure Mounting: Ensure the solar panel is securely mounted or laid flat on a stable surface to prevent damage and maximize sunlight exposure.
-
Regular Cleaning: Clean the solar panel surface periodically with a soft cloth and mild detergent to remove dirt and debris, maintaining optimal performance.
Elevate Your Outdoor Experience:
Experience the freedom of off-grid power with the Foldable Solar Panel. Stay connected and powered up during your outdoor adventures with this reliable and efficient solar charging solution. Embrace renewable energy and enjoy the convenience of sustainable power wherever your journey takes you.
This product we set up inventory in Russia, Canada, Ukraine, Czech Republic ,Spain，Belgium. When you buy it， we will ship from your country that you don't need to consider customs clearance and duties and it will be fast delivery.
However，the zip code in Spain that starts with 35, 38, 51, 52 need to provide buyer identity information, sales vouchers, and add 15 euros for customs clearance and duties.
The zip code in Russia that starts with 6，the delivery time is long ，maybe 30-45 days and some zip codes will only be sent to the post office instead of the shipping address，you need to go to the post office to pick up the parcel.
Some areas of Canada are remote areas and need to add remote fees. When you need to add remote fees, we will send you an email. Please check the mail, thank you！

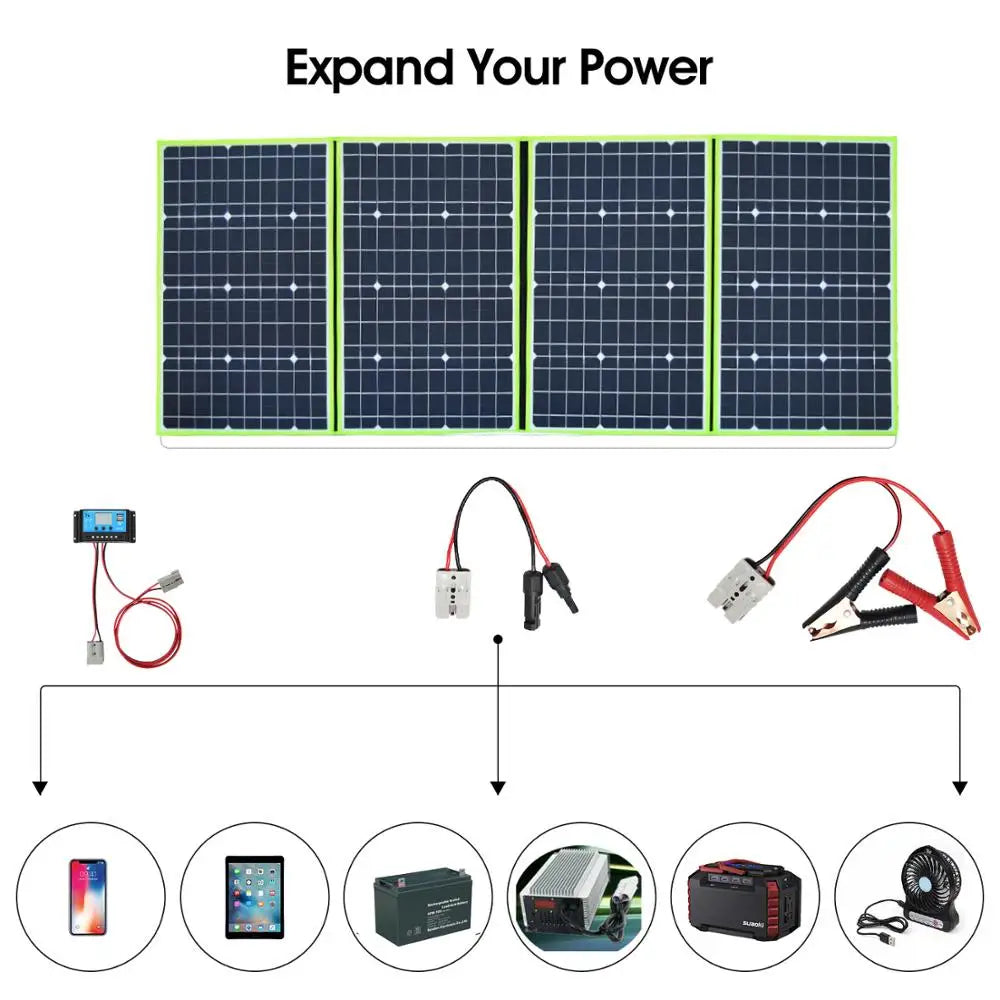

How to Connect the Solar Kit？
1. Install the solar controller in the area you need. It is recommended that the controller be installed indoors in a cool area to extend the service life.
2. First connect the controller to the battery or mobile power supply by wire (note that the controller must first connect the battery or mobile power).
3. Install the solar panel in a sunny area, do not install in the shade of the trees or have other obstructed areas.
4. Connect the installed solar panel to the controller
5. Follow the instructions of the controller, set the parameters according to your needs, or use the default parameters.

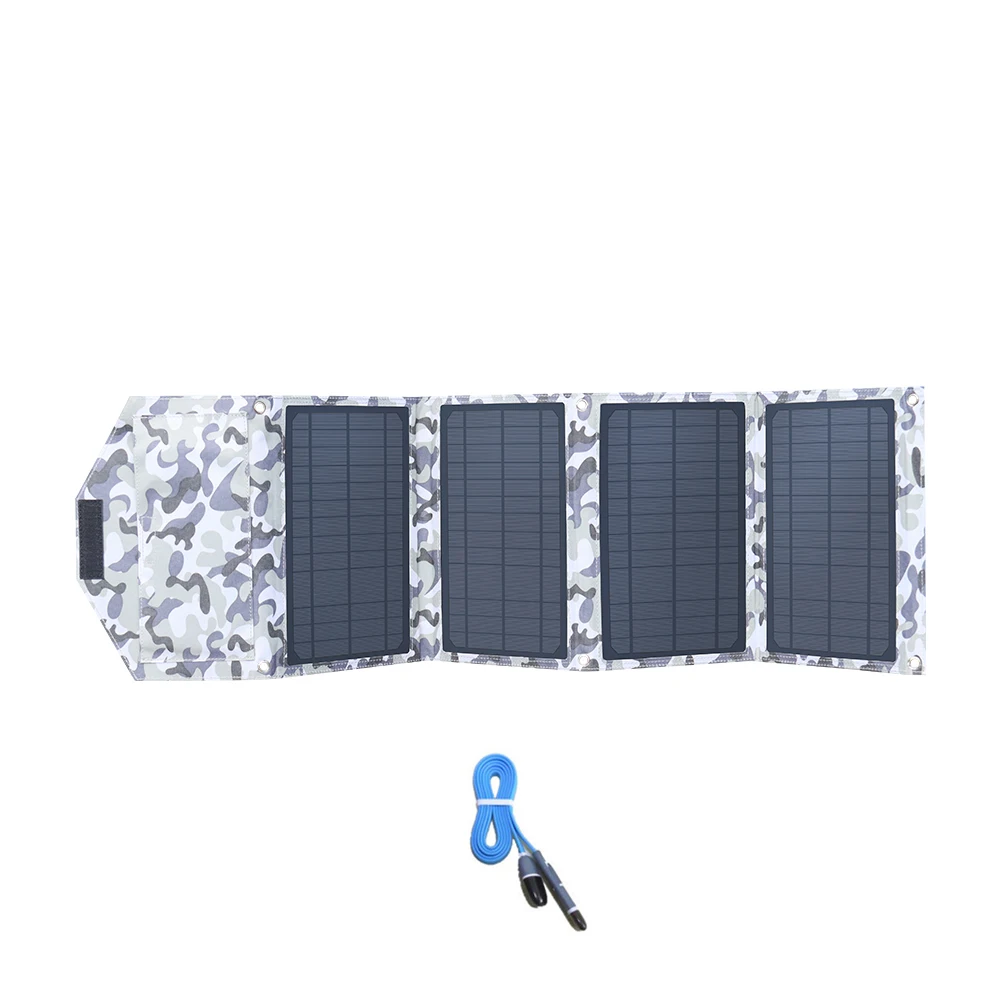

（black / Camouflage ）30W Folding solar panel specifications
Solar panel Maximum Power 30W
Solar panel Open circuit voltage 15.4V
Solar panel Short circuit current 2.2A
Solar panel Maximum Voltage 14V
Solar panel Maximum current 2.1A
USB Output Voltage 5V(9V/12V Only for quick charge devices)
USB Maximum Output current 3A
Unfold size 1050*290*5mm
Fold size 210*290*37mm
Weight 1245g

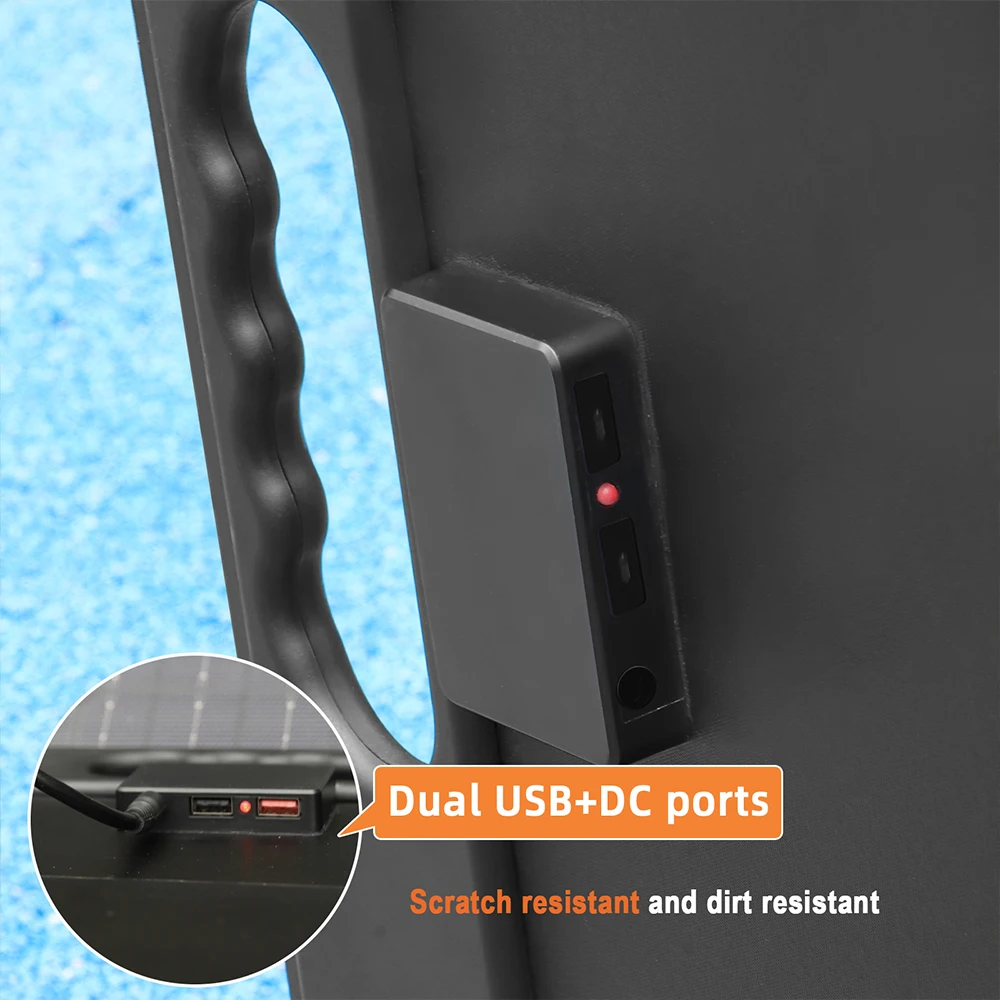

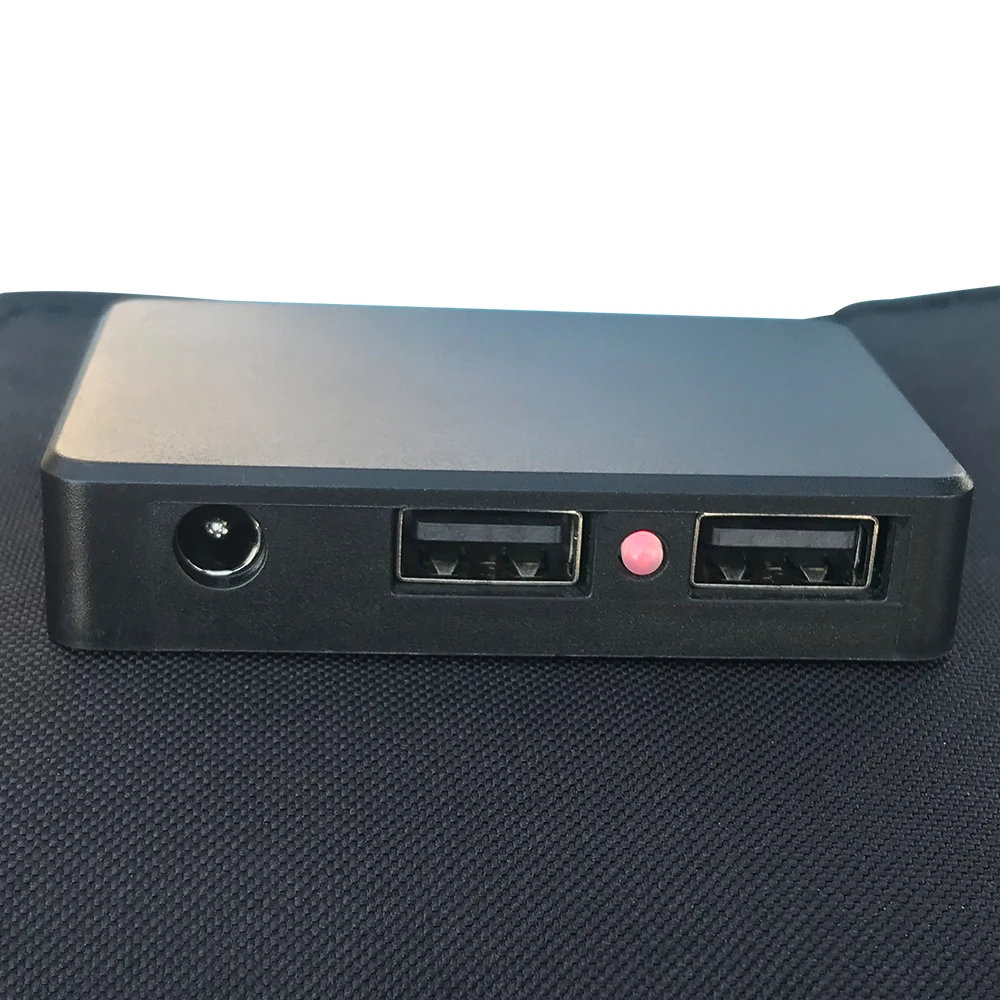

Color Black Output port Dual USB ( A USB QC3.0 ) Waterproof No Cell Monocrystalline silicon Working temperature -20 ℃ ~ +60 ℃

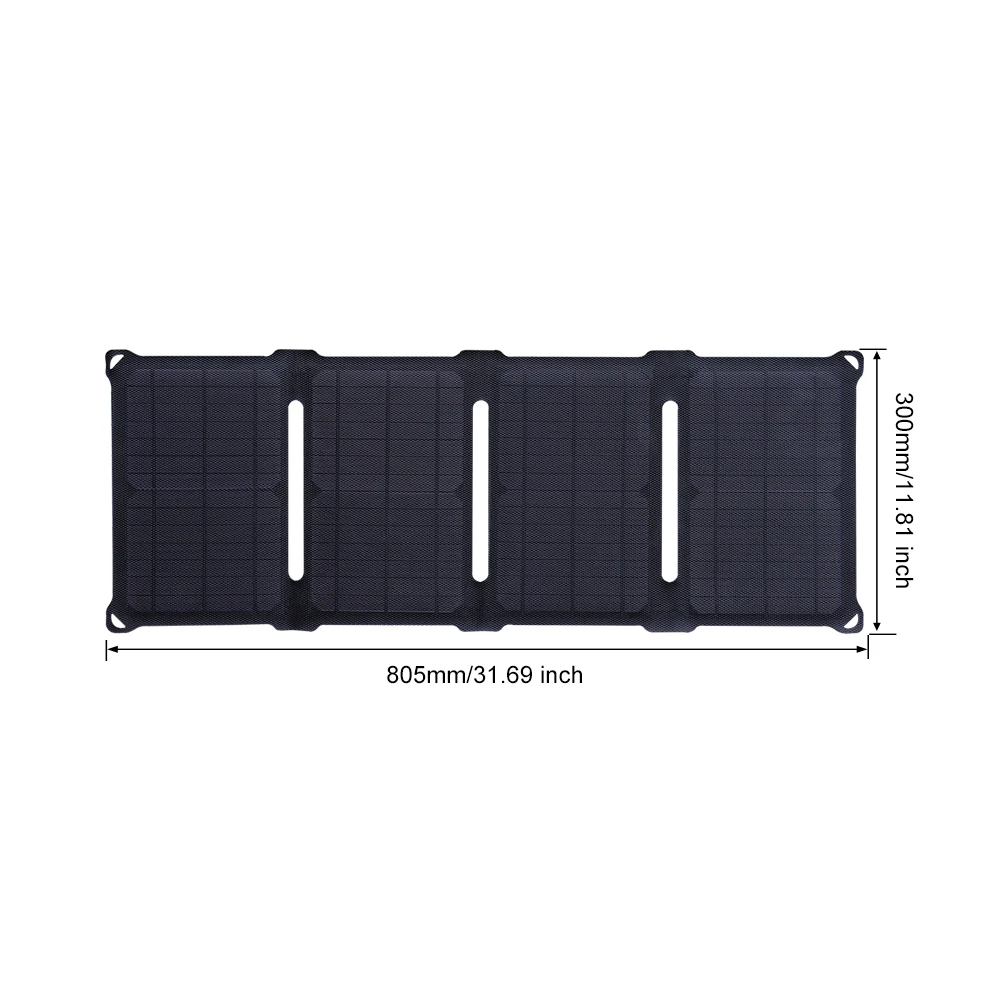

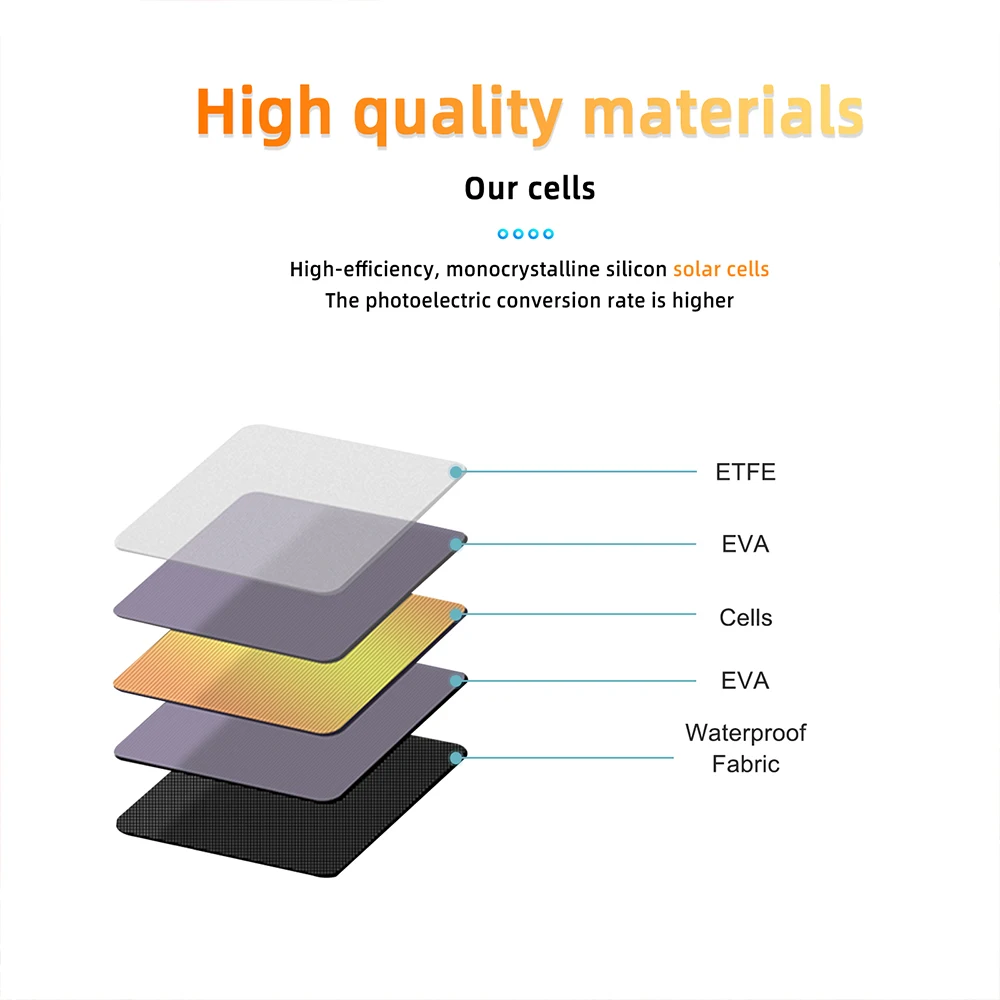

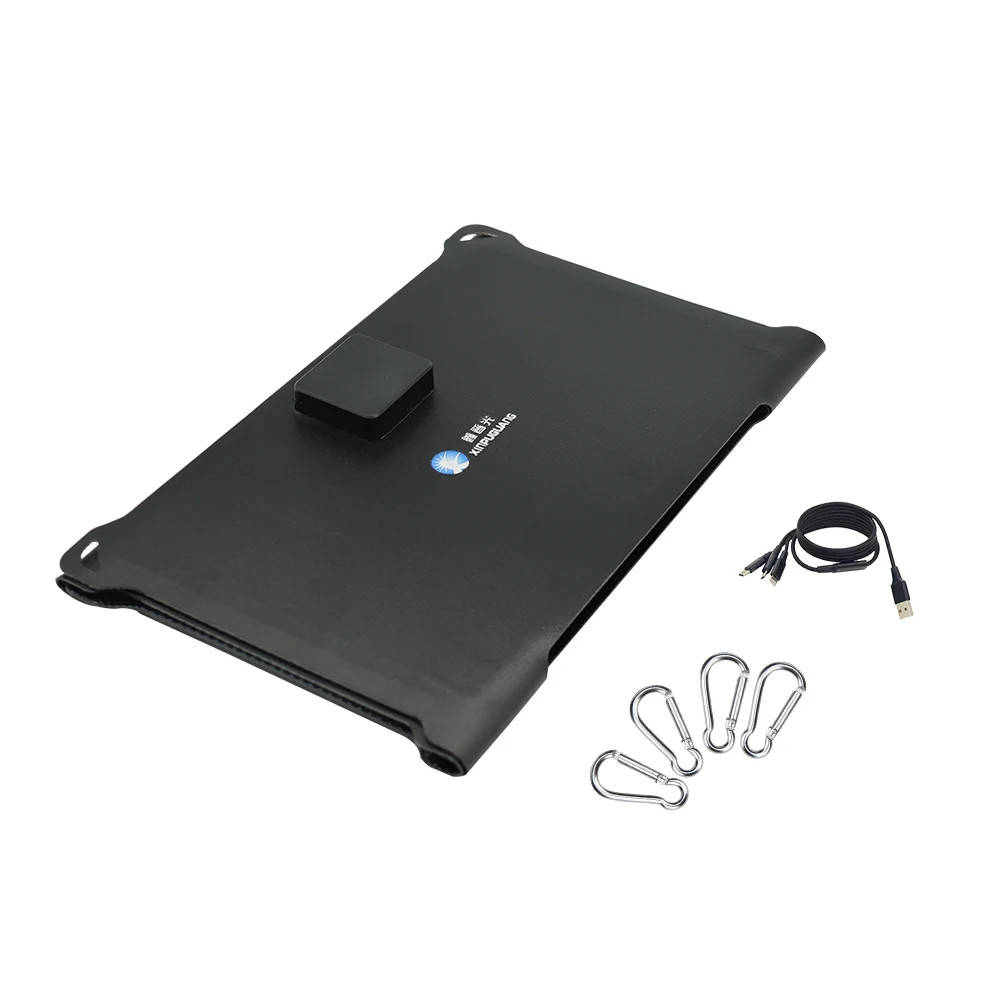

ETFE 5V 30W solar charger
Solar panel Maximum Power 30W
Solar panel Open circuit voltage 15.4V
Solar panel Short circuit current 2.2A
Solar panel Maximum Voltage 14V
Solar panel Maximum current 2.1A
USB Output Voltage 5V(9V/12V Only for quick charge devices)
USB Maximum Output current 3A
Unfold size 805*300*15mm
Fold size 210*300*37mm
Weight 1245g
Color Black Output port Dual USB Waterproof No Cell Monocrystalline silicon Working temperature -20 ℃ ~ +60 ℃
50 watt foldable solar
Specification Power:
50W Working voltage: 18V
Open circuit voltage: 21.6V
Maximum working current: 2.77A
short circuit current: 3A
Working temperature: -20 ℃ ~ + 60 ℃;
Weight : 1.1kg
USB output ： 5V/2A USB
DC output：18V DC5521
Packing list:
1*50w Foldable Solar Panel
1*1.3meters Cigarette lighter with DC cable
1* 0.5m DC cable
10*DC adapter
1*1.3meters DC cable with alligator clip
60 watt foldable solar
Power: 60W
Working voltage: 18V
Open-circuit voltage: 21.6V
Maximum working current: 4.44A
Short circuit current: 4.88A
Working temperature: -20 ℃ ~ + 60 ℃

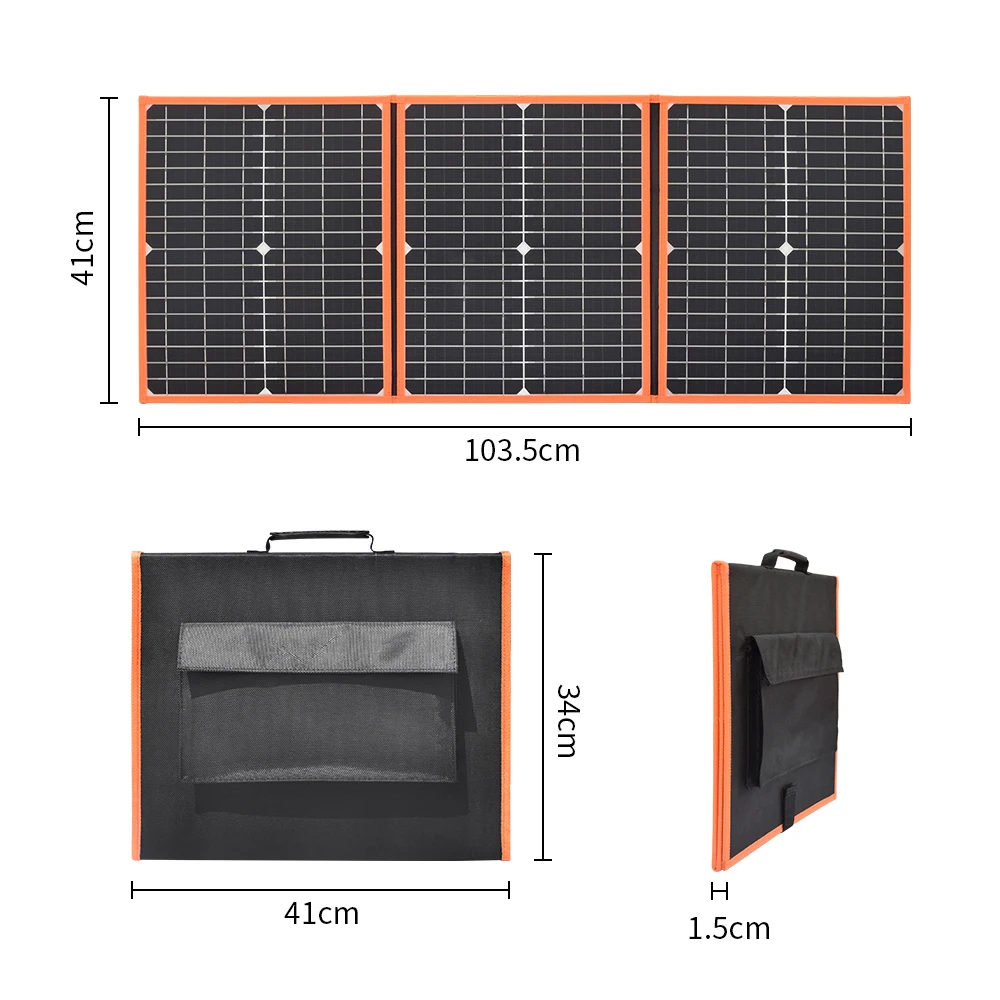

Foldable Size：410X340X15mm
Expand Size:1035X410X3mm
Weight : 2.1kg

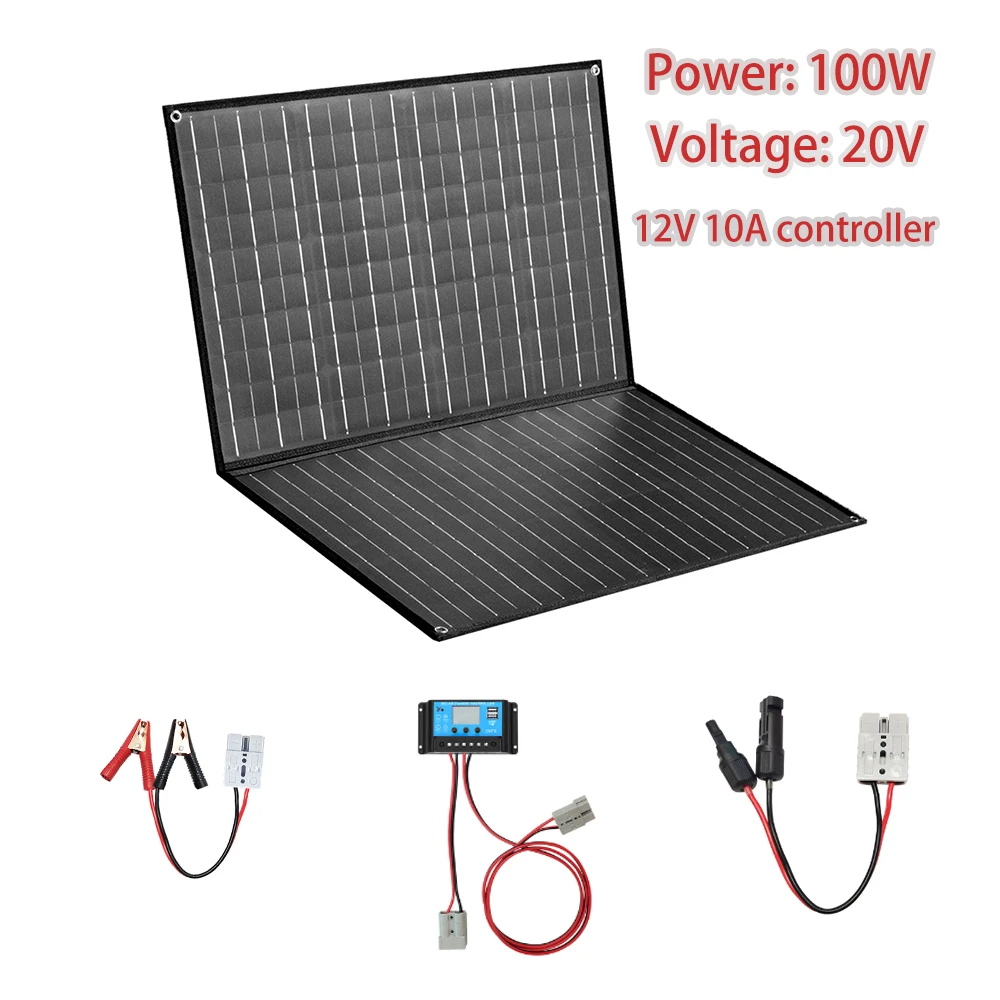

100 watt foldable solar
Specifications:
1. 100w Solar Panel
Maximum Power: 100w
Optimum Operating Voltage (Vmp): 20V
Optimum Operating Current (Imp): 5A
Open-Circuit voltage (Voc): 24V
Short-Circuit Current (Isc): 5.5A
Efficiency: 19.8%
Fold Size: 660X445X10mm, Expension Size: 890X660X3mm
Weight: 2.5kg
Operating temperature: -20℃ ~ + 60℃
STC(Standard Testing Condition):Irradiance 1000w/m2 Temperature 25℃ AM=1.5

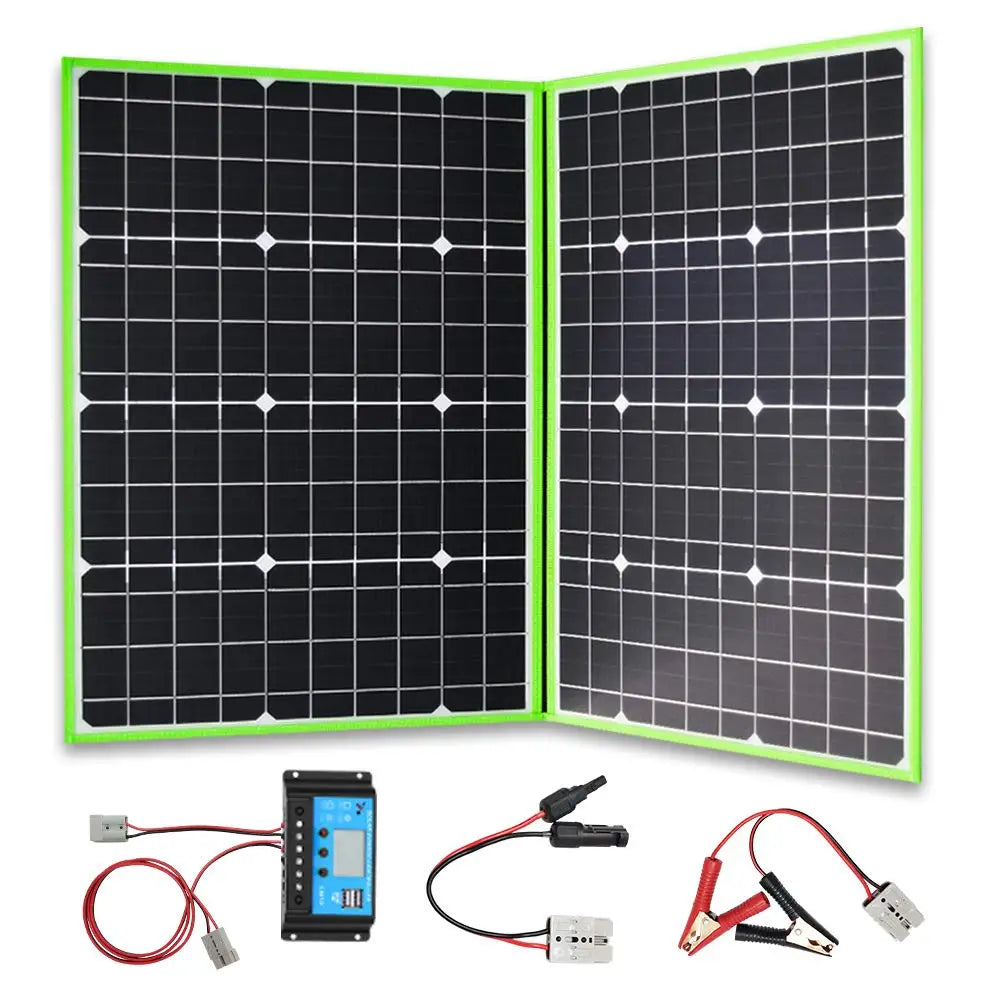

Package Listing:
1. 1 x 100w foldable solar panel
2. 1 x 10A solar controller with 0.2 m wire and 1.5 m wire
3. 0.2m 2.5mm2 alligator clip cable

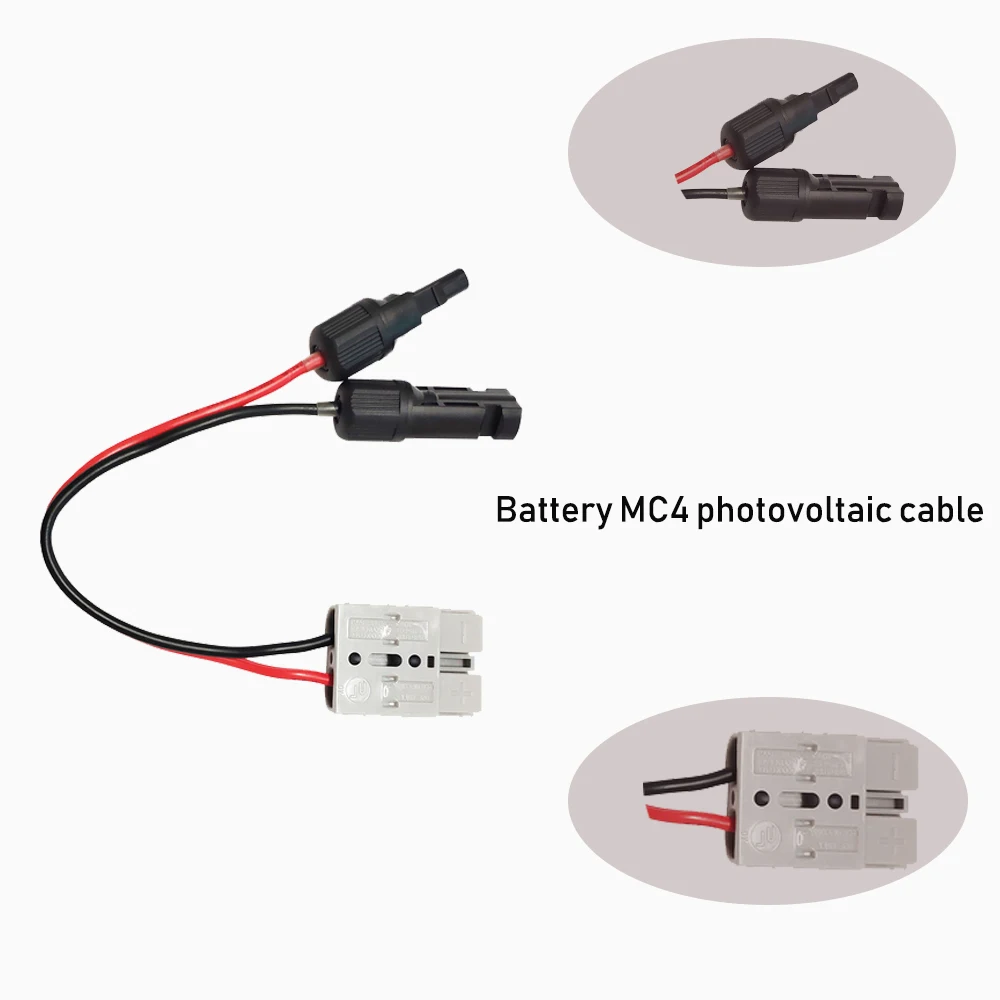

4. 0.2m 2.5mm2 PV cable
19.8V 100W Packing list:
1*100w ETFE Foldable Solar Panel
1*1.3meters Cigarette lighter with DC cable
1* 0.5m DC cable
10*DC adapter
1*1.3meters DC cable with alligator clip

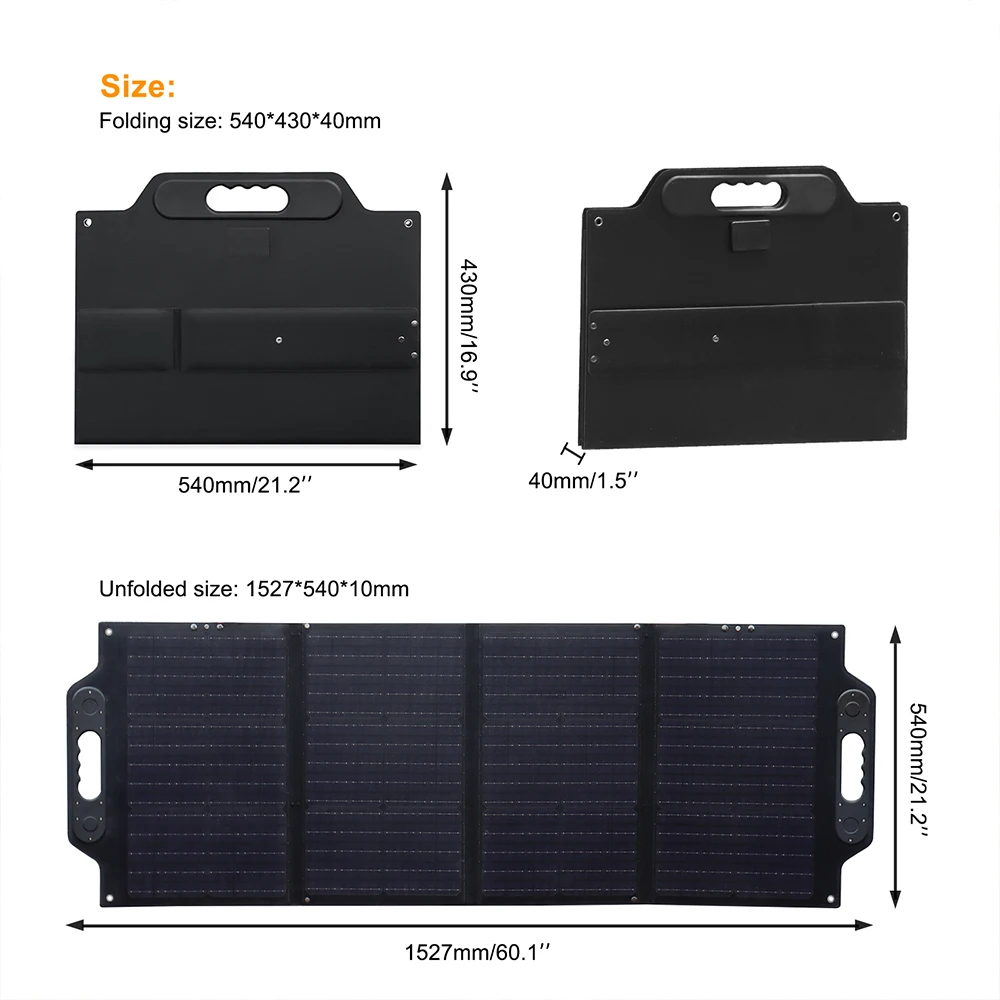

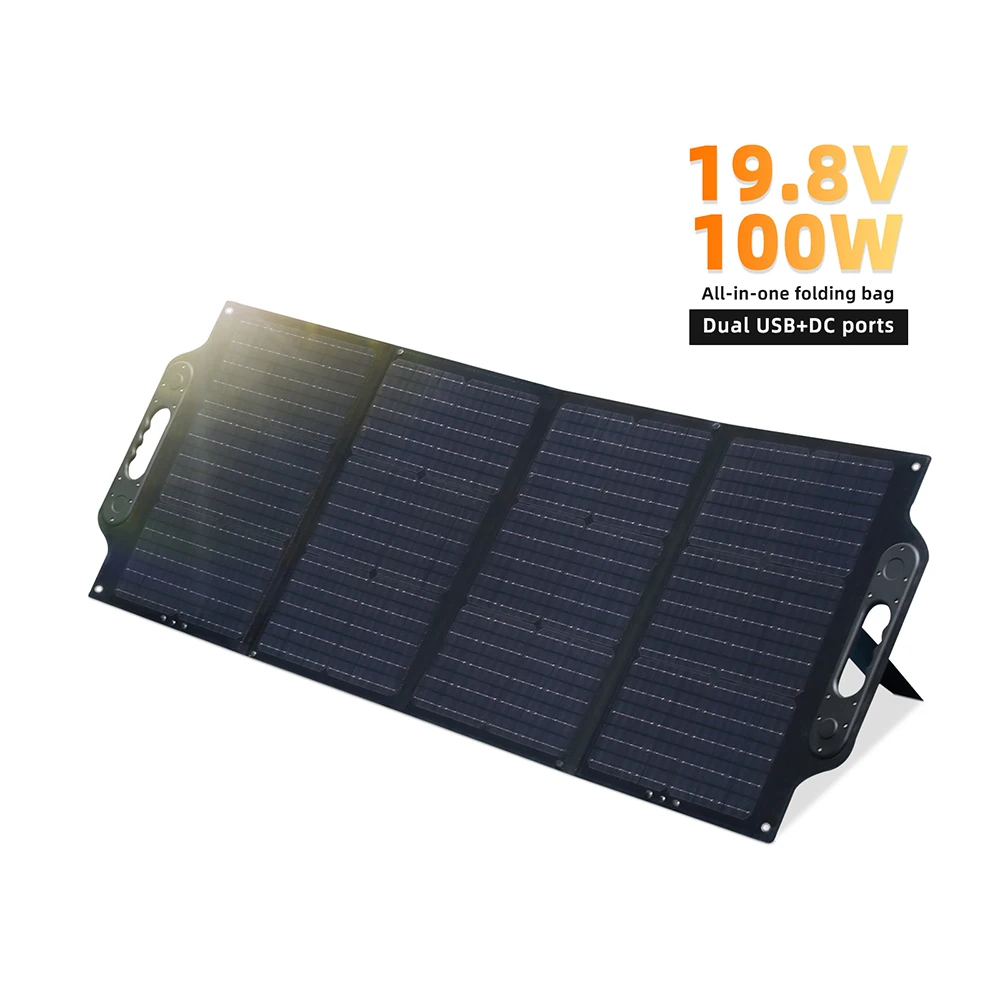

19.8V EFTFE Solar charger Specification
Power: 100W
Working voltage: 19.8V
Open-circuit voltage: 23.76V
Maximum working current: 5.05A
Short circuit current:5.55A
Working temperature: -20 ℃ ~ + 60 ℃
Foldable Size：540*430*40MM
Expand Size:1527*540*18mm
Weight : 4kg
USB output ： 5V/2A USB
DC output：18V DC5521

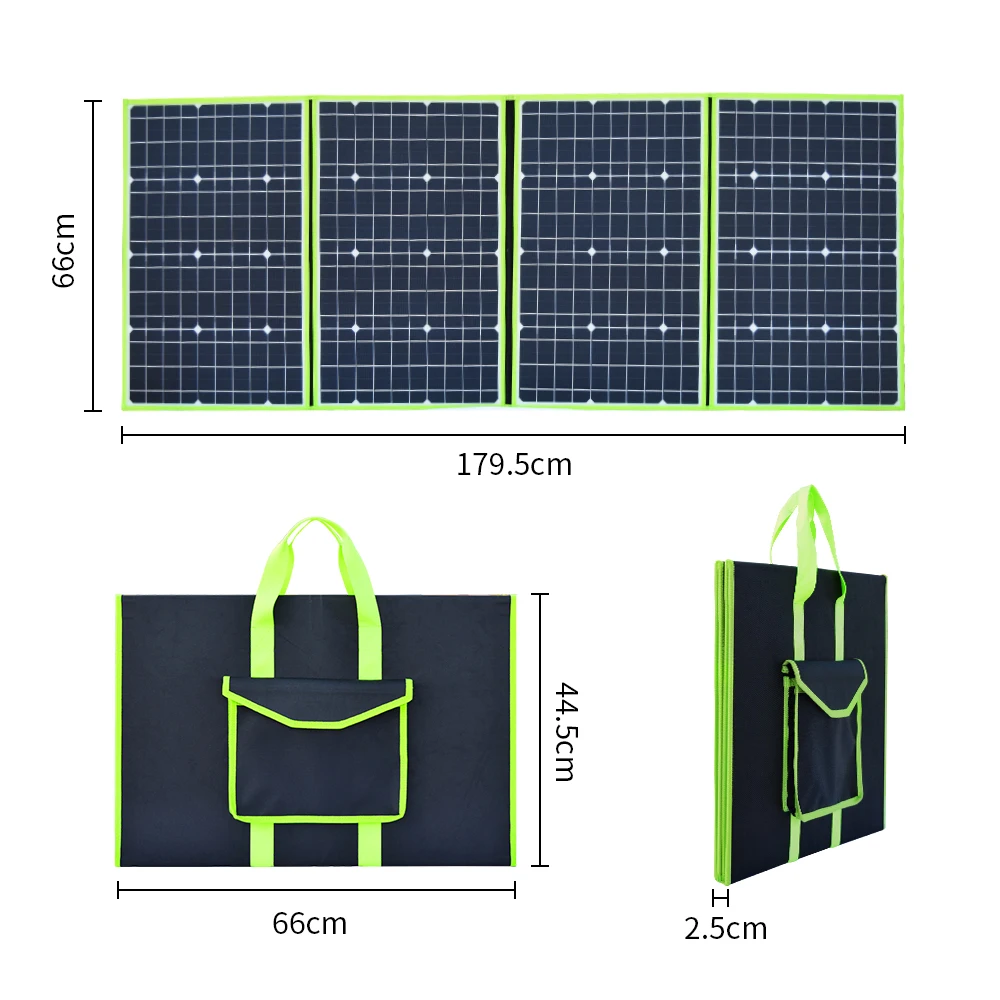

200 watt foldable solar
Specifications:
1. Solar Panel Charger
Maximum Power: 200w
Optimum Operating Voltage (Vmp): 20V
Optimum Operating Current (Imp): 10A
Open-Circuit voltage (Voc): 24V
Short-Circuit Current (Isc): 12A
Efficiency: 19.8%
Fold Size: 660X445X20mm, Expension Size: 1795X660X3mm
Weight: 5.15kg
Operating temperature: -20℃ ~ + 60℃
STC(Standard Testing Condition): Irradiance 1000w/m2 Temperature 25℃ AM=1.5
Package Listing:
1. 1 x 200w foldable solar panel
2. 1 x 20A solar controller with 0.2 m wire and 1.5 m wire
3. 0.2m 2.5mm2 alligator clip cable
4. 0.2m 2.5mm2 PV cable
Controller connection instructions
a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display.
b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable.
c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller.
d According to the controller manual, adjust the parameters you need.
Precautions for installation of solar system
a When connecting this solar system, first connect the controller to the battery, and then connect the solar panel. Do not reverse the connection order.
b Please install the controller in a well-ventilated area such as indoors or shadows to avoid exposure of components and prevent water from entering the controller.
c The total power of the solar panel and DC load cannot be greater than the rated power of the controller (voltage × current), otherwise there may be a risk of burning the controller.
d The inverter cannot be connected to the controller, but must be connected to the battery.
e After installation, check whether all line connections are tight to avoid the danger of heat accumulation due to virtual connection.
f The positive and negative poles of the solar panel in the same series connection cannot be short-circuited to prevent damage to the solar panel.
g The positive and negative poles of the controller and battery should be checked clearly. Do not connect the positive and negative poles in reverse
How to use rechargeable batteries：

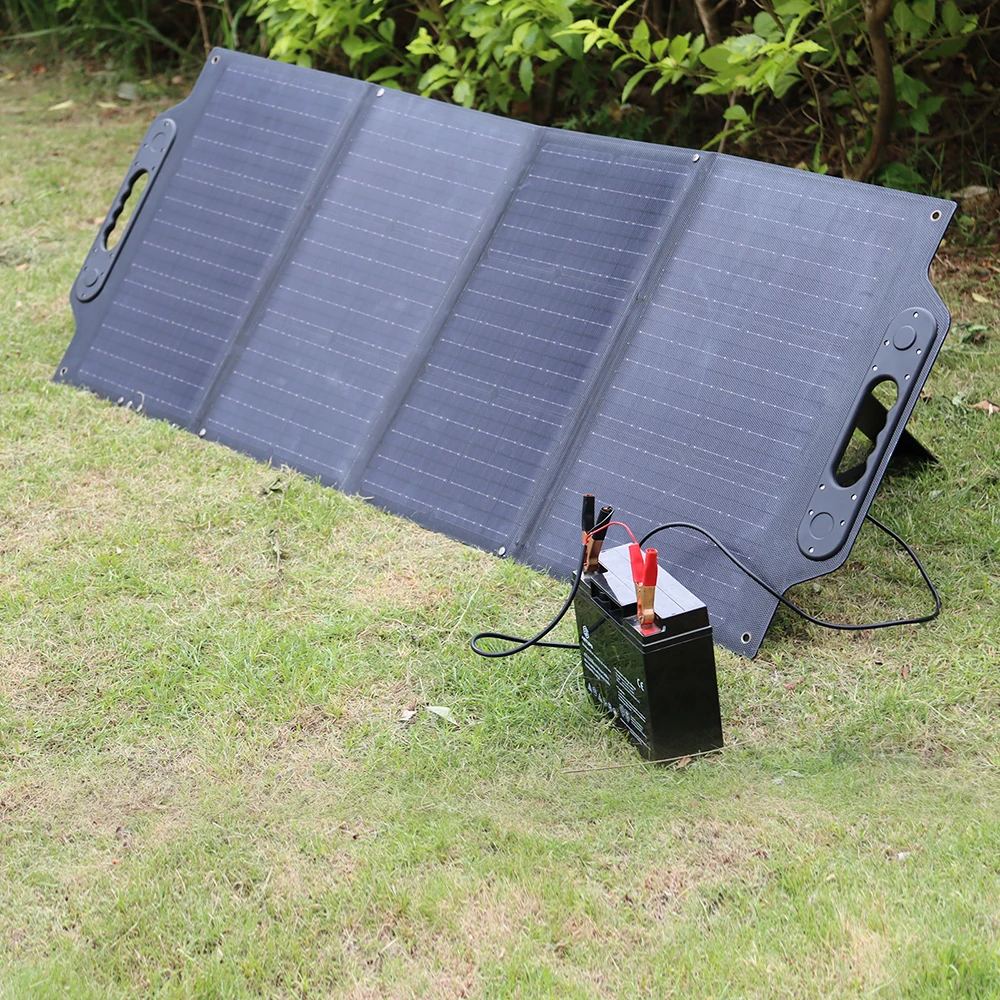

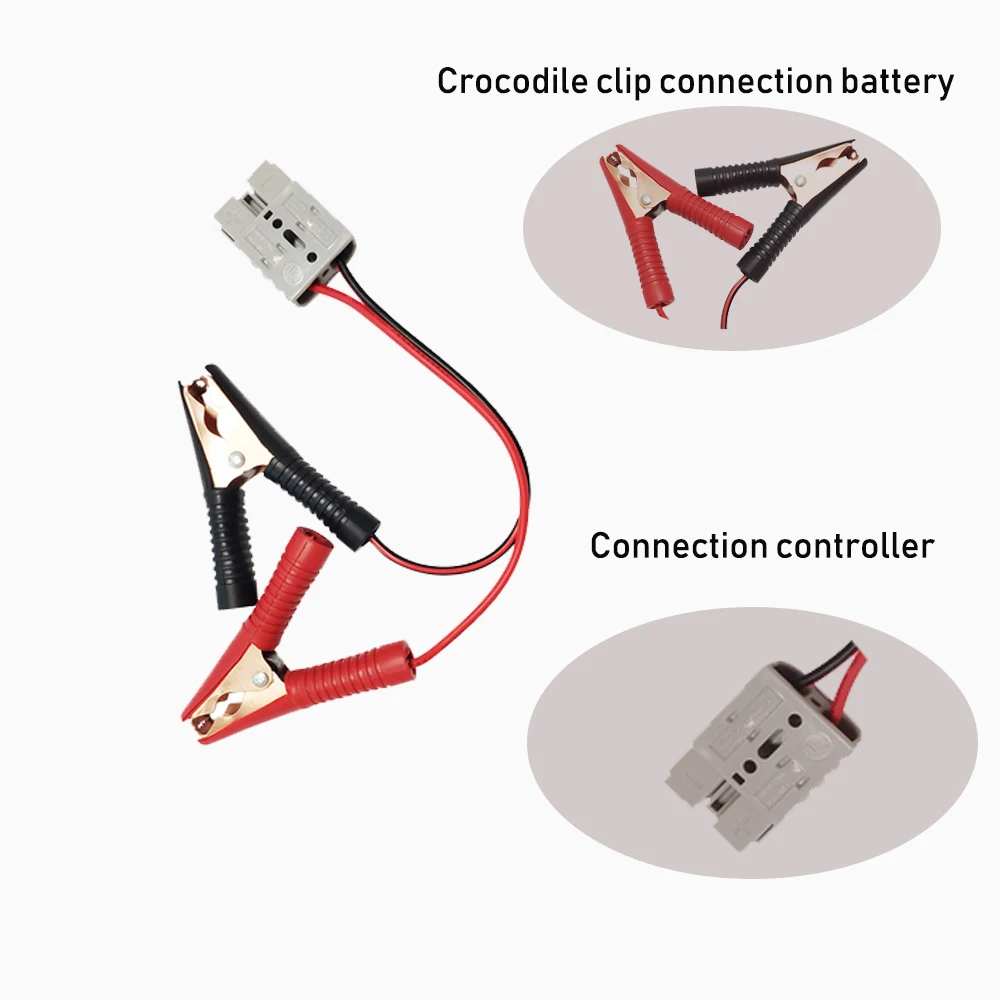

① First connect the controller battery terminal line with the crocodile clip line.
② Clip the red and black clips of the crocodile clip to the positive and negative terminals of the battery, respectively.
③ Connect the output line of the solar folding bag with the photovoltaic input line of the controller.
④ If there is a DC load, connect the DC load to the controller.
⑤ Place the solar folding bag in the sun, and try to make the panel face the sun as much as possible to prevent the obstruction.
⑥ Adjust the controller parameters (set the parameters according to the controller's instructions, or set the parameters according to your own requirements, and use the default parameters).
How to charge a portable mobile power
supply：
① Connect the controller battery terminal cable to the portable power bank adapter first.
② Replace the charging head of the mobile power adapter with a matching interface.
③ Plug the replaced charging cable into the charging port of the mobile power supply.
NOTE:
When there is no sunshine, the light intensity decreases to starting point. Then the controller recognizes the starting signal after six minutes. The load will start to work according to the setting parameter. When there is sunshine, the light intensity rises to starting point, and then the controller recognizes the close signal after six minutes. The load will stop working.
Operating Instruction
Installation and operation of solar cell module
a). Climatic Conditions
Install PV module according to the following conditions
Ambient Temperature: －20℃ to ＋ 40℃.
Operating Temperature: －20℃ to ＋ 80℃.
Borne Snow Pressure: less than 2000Pa
Borne Wind Pressure: less than 3000Pa
Water proof: don’t soak the PV module in water or continuously expose it to the sprinkling device or under fountains.
Corrosion resistance: except for corrosive salt area and sulfurous area.
